Front Seat

FRONT SEAT

Front Seat:

REMOVAL AND INSTALLATION

1. Remove the front seat assembly.

Tightening torque
35 - 55 Nm (350 - 550 kg.cm, 25 - 40 lb.ft)

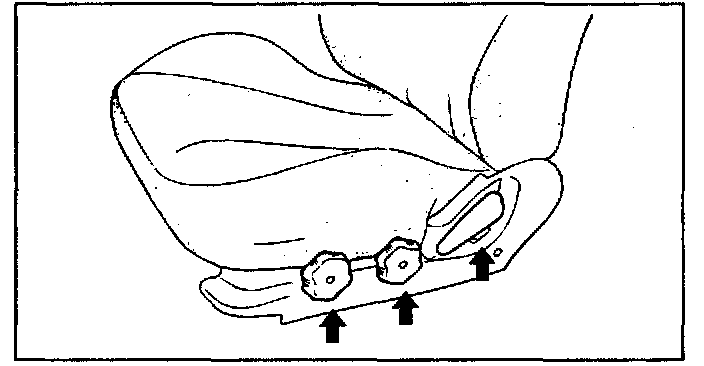

2. Remove the seat reclining lever and the height adjuster handle.

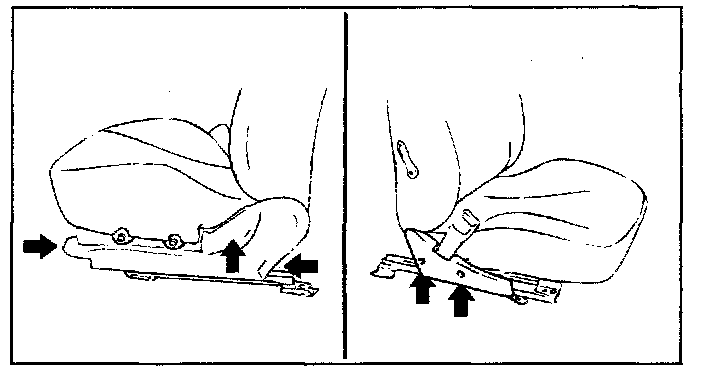

3. Remove the seat shield cover.

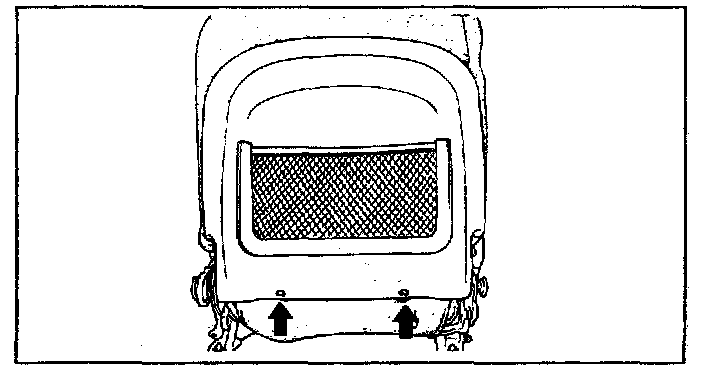

4. Remove the seat back panel.

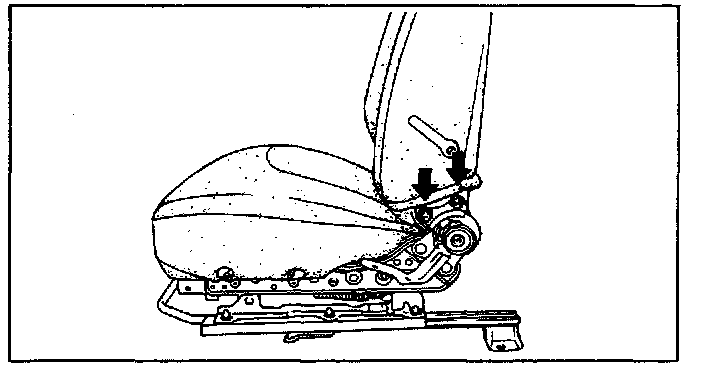

5. Remove the seat back assembly.

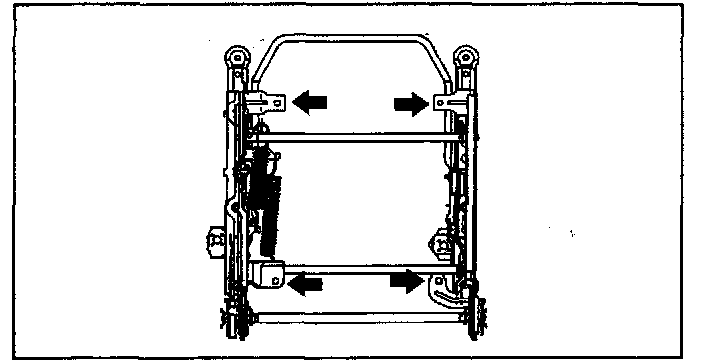

6. Remove the seat track.
7. Installation is the reverse of removal.
