Fluid - M/T: Service and Repair

REPLACEMENT OF TRANSAXLE GEAR OIL

Use HP Gear Oil SAE 75W/90 (API-GL-4).

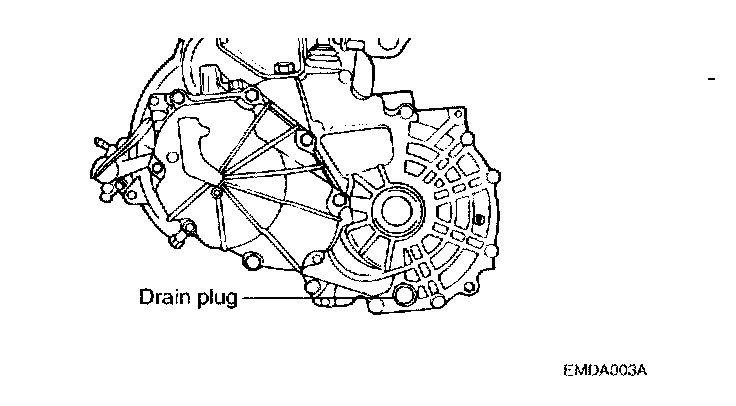

1. With the vehicle parked on a level surface, remove the drain plug and drain the transaxle oil.





2. Replace the gasket with a new one and install the drain plug.
Tightening torque:
Drain plug: 30 - 35 Nm (300 - 350 kgf-cm, 22 - 25 ft. lbs.)

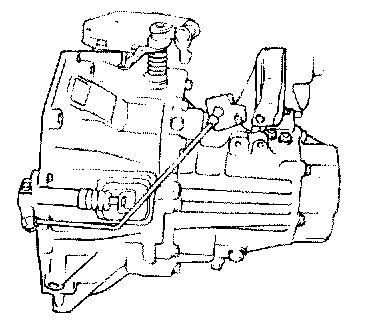

3. Add new oil the through the filler plug, filling to a level of 5-9mm (0.2-0.4 inch) below the plug opening.
Transaxle oil total capacity: 2.15 liters (2.27 U.S. qts., 1.89 Imp.qts.)
Tightening torque:
Filler plug: 30 - 35 Nm (300 - 350 kg-cm, 22 - 25 ft. lbs.)
