Coolant Line/Hose: Service and Repair

INSPECTION
Check the coolant pipe and hose for cracks, damage, or restrictions.
Replace if necessary.

REASSEMBLY

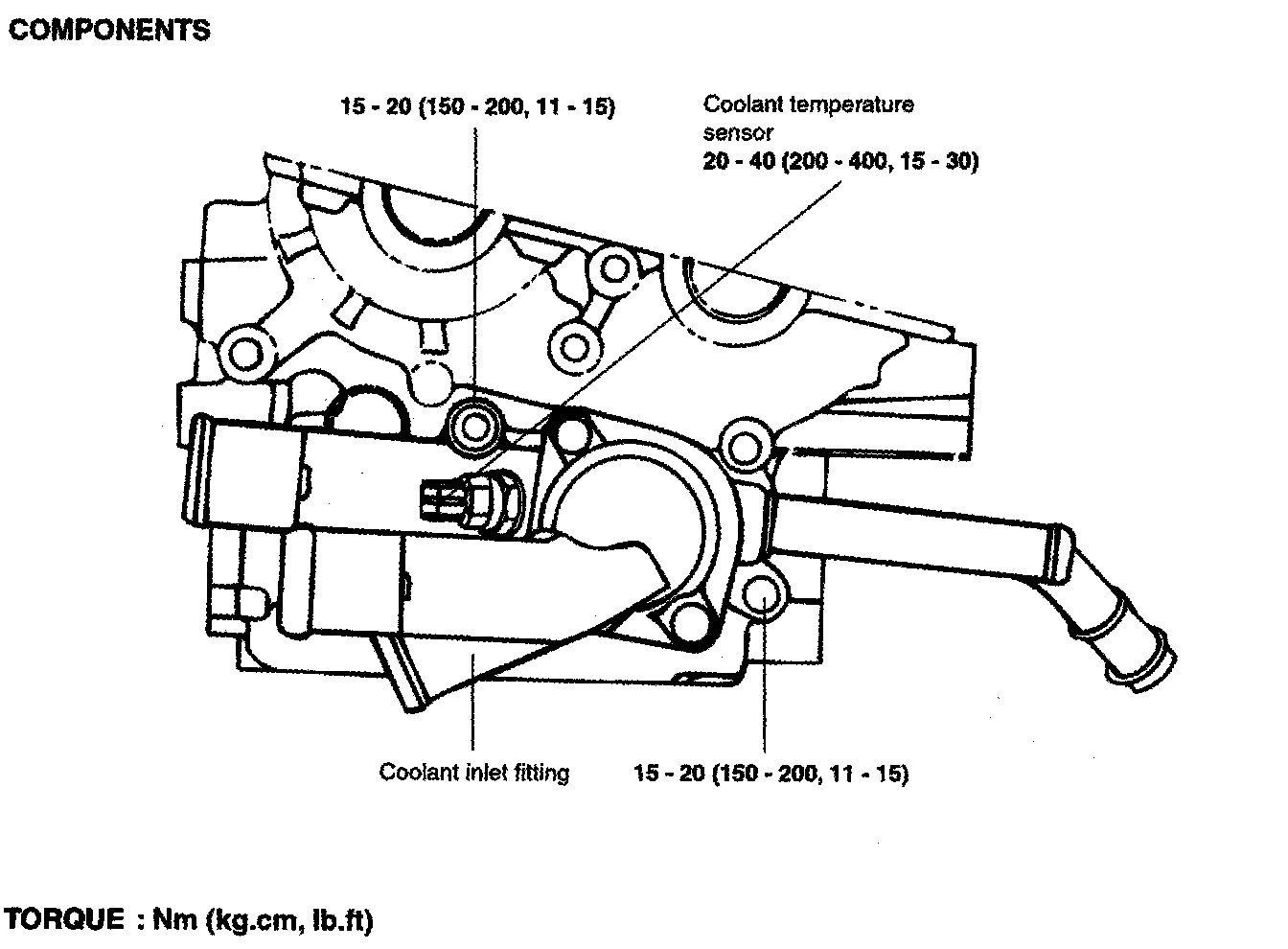

If an O-ring in the groove provided at the coolant inlet pipe end, Wet the O-ring with coolant and insert the coolant inlet pipe.

NOTE:
- Do not apply oil or grease to the coolant pipe O-ring.
- Keep the coolant pipe connections free from sand dust, etc.
- Insert the coolant pipe fully into the coolant pump.
- Replace it with a new one, Do not reuse O-ring.
