Rear

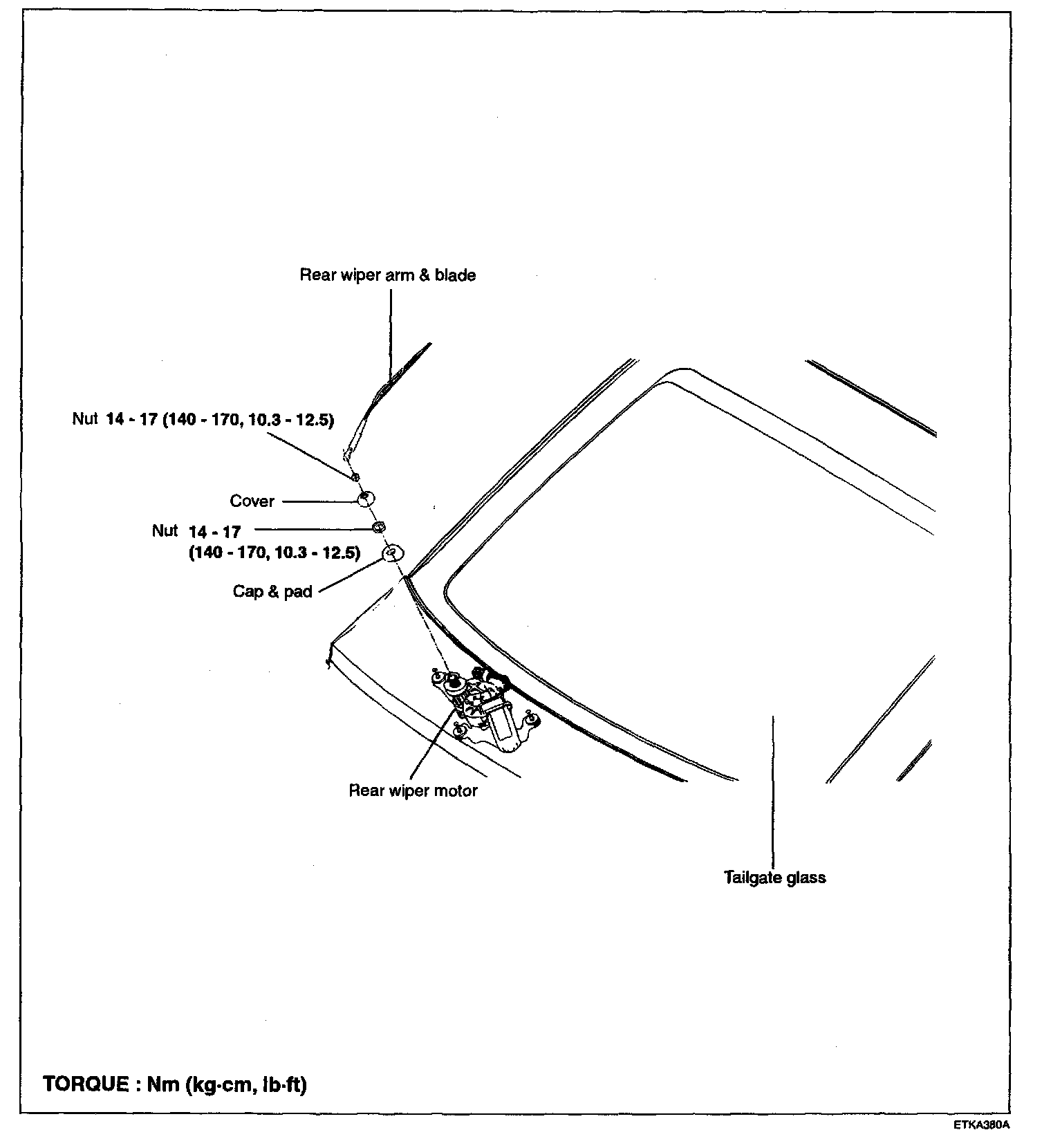

Rear Wiper/Washer:

REMOVAL

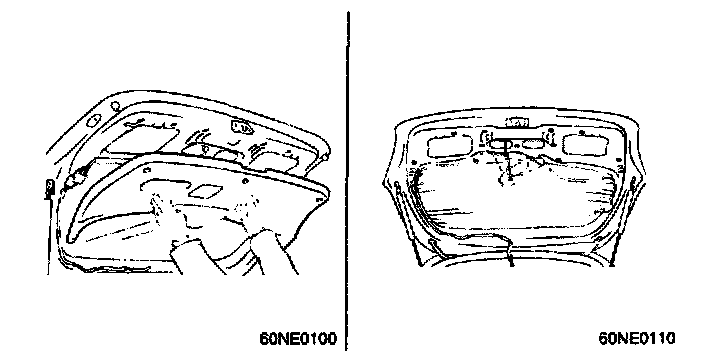

1. Remove the trim from the tailgate.

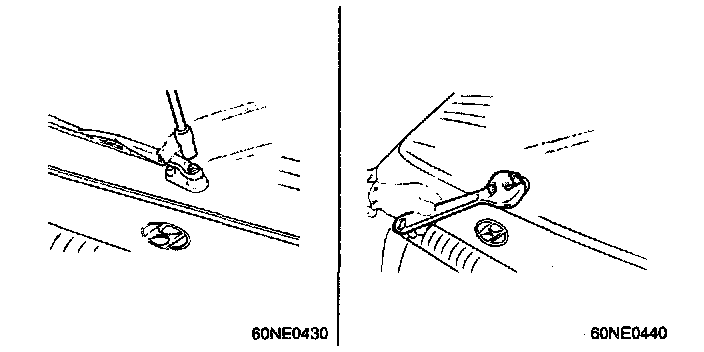

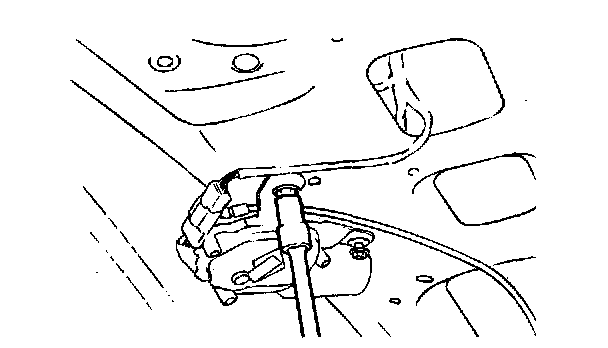

2. Remove the rear wiper and the rear motor.

INSTALLATION

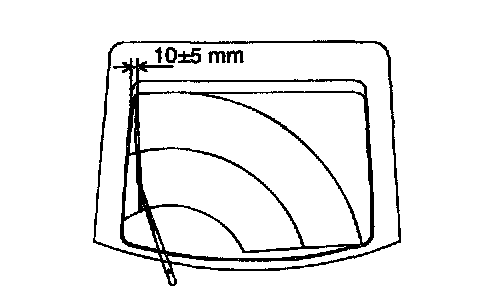

1. Install the rear wiper arm to the specified stop position.

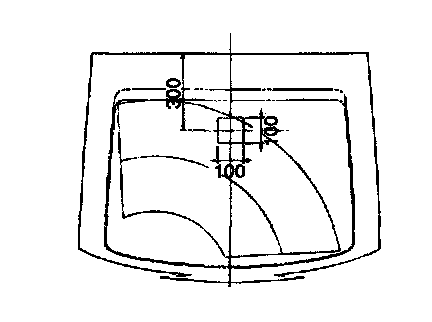

2. Set the washer nozzle on the specified spray position.
