Rear
REAR WIPER/WASHER SWITCH 1.
Disconnect the negative (-) battery terminal.
2.

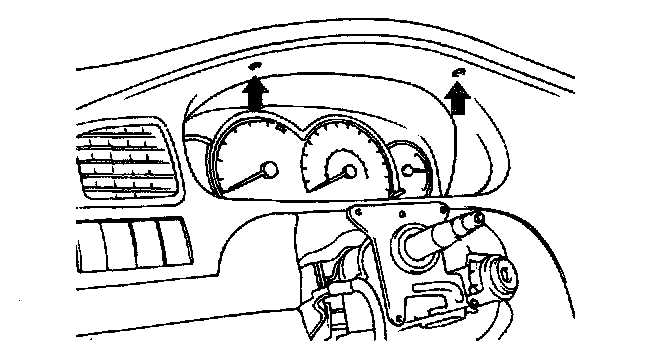

Remove the screws holding the instrument facia panel.
3.

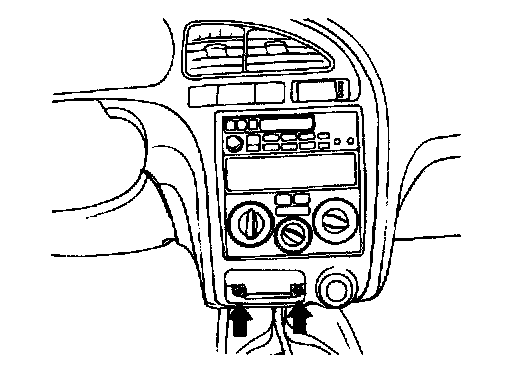

After removal of the ash tray, remove the screws holding the instrument facia panel and remove that.
4.

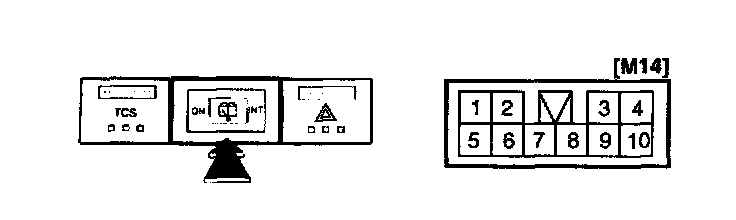

Disconnect the connectors from the rear wiper & washer switch.
5.

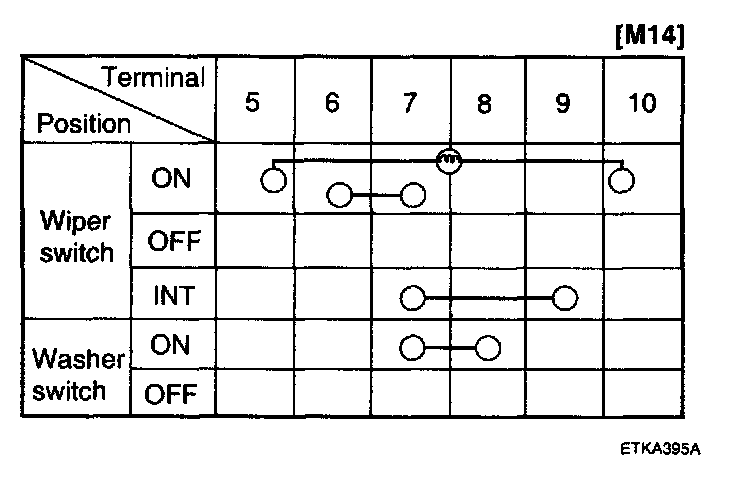

Check for continuity between the terminals.
