Acceleration/Deceleration Sensor: Service and Repair

G-SENSOR





COMPONENTS [ONLY 4WD]

INSPECTION

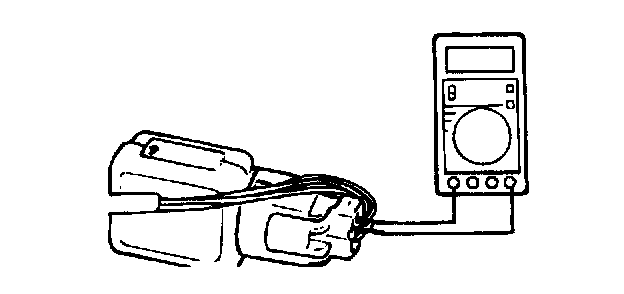

1. Insert the probes of voltmeter to the back of the harness side of G-sensor connector 2 and 3.








2. Turn the ignition switch to ON and check the output voltage of G-sensor.

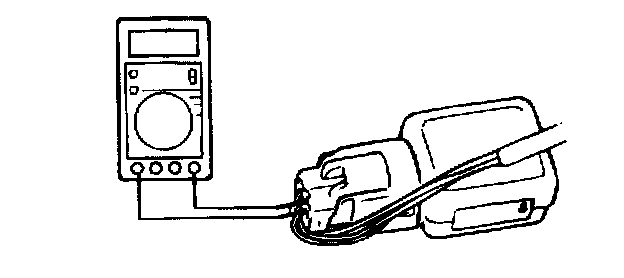

3. Secure the G-sensor so that the arrow mark of the sensor mounting surface is facing straight down, and then check the output voltage between terminal 2 and 3.

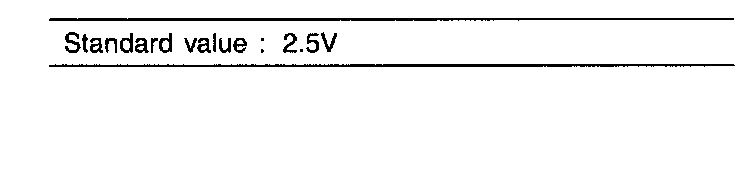

4. In the case that the voltage is outside the standard value, and there is no abnormality in power supply and ground wires, replace the G-sensor.
