Brake Rotor/Disc: Service and Repair
BRAKE DISC REMOVAL 1.
Remove the wheel.
2.
Remove the caliper assembly from the anchor plate and suspend it with a wire.
3.
After loosening the 2 screws on the disc, remove the disc.

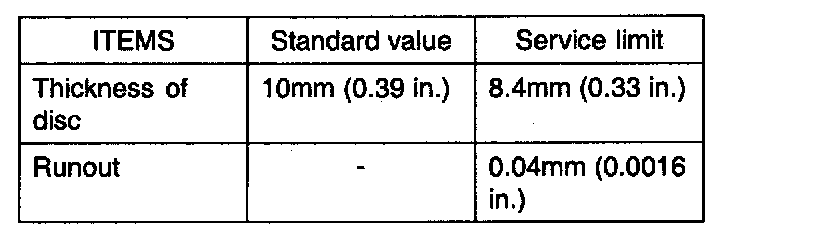

INSPECTION Check the disc for wear or damage and replace if necessary.
