Air Bag Control Module

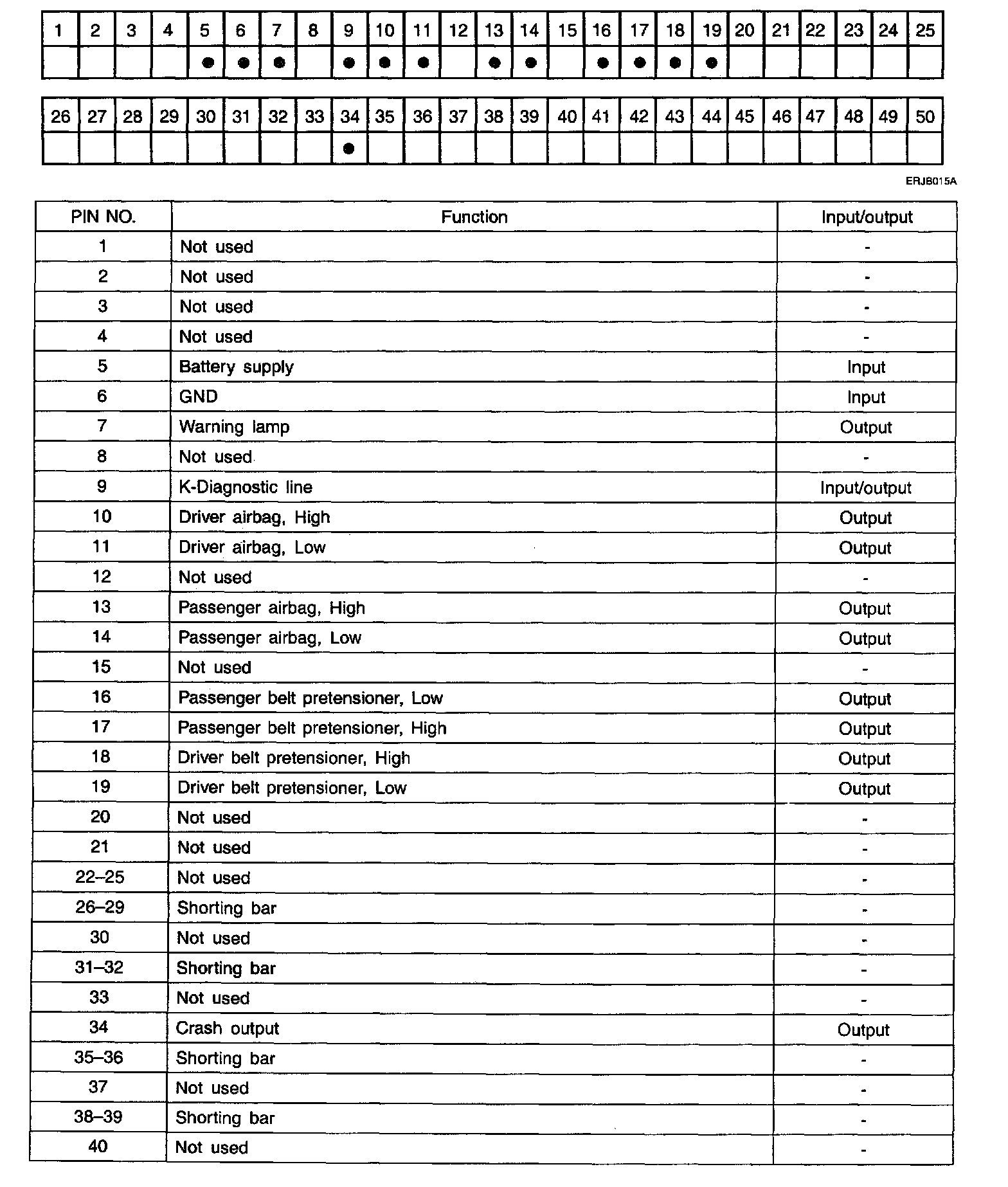

SRSCM Connector (1) DAB + PAB + BPT (Pin No:1 - 39) Part 1:

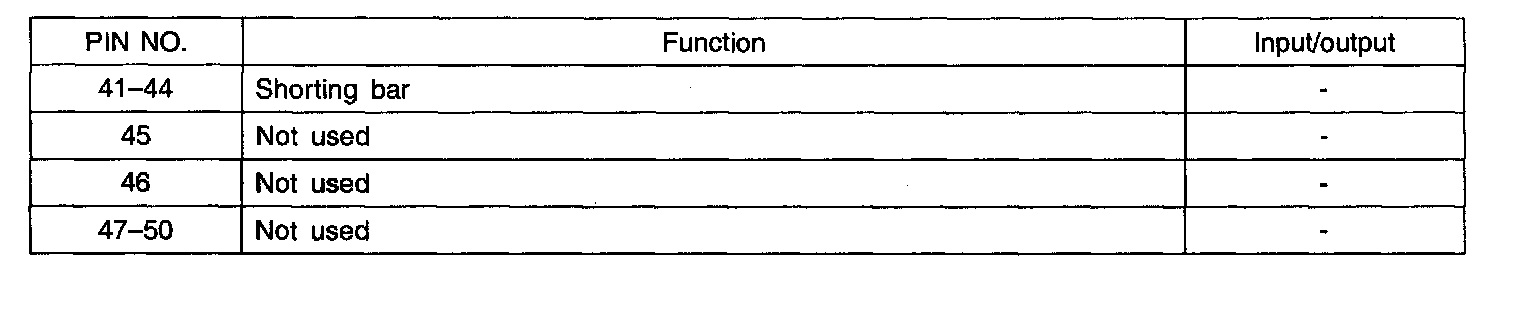

SRSCM Connector (1) DAB + PAB + BPT (Pin No: 41 - 50) Part 2:

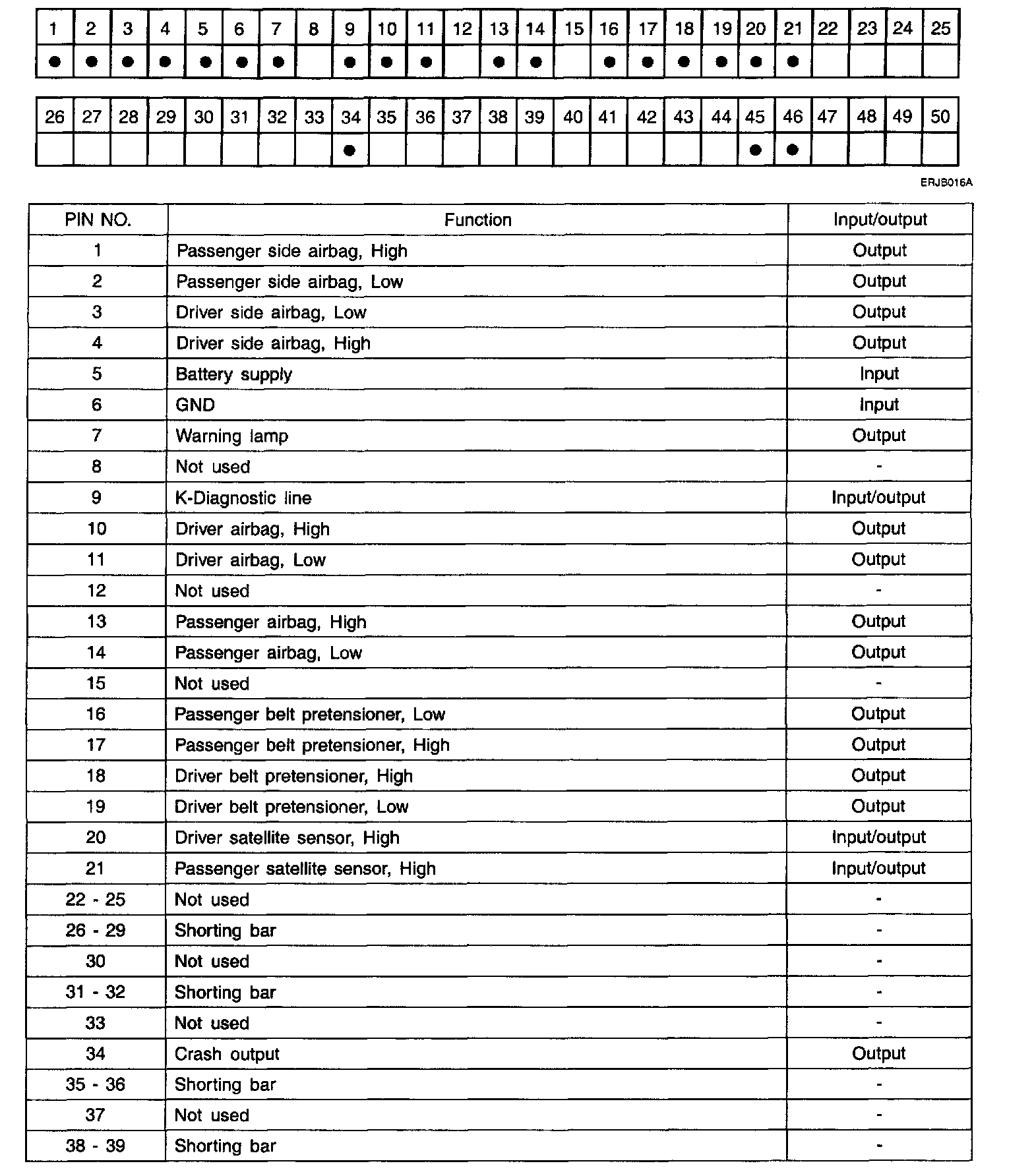

SRSCM Connector (2) (SRE-HMC) DAB + PAB + SAB + BPT (Pin No:1 - 39) Part 1:

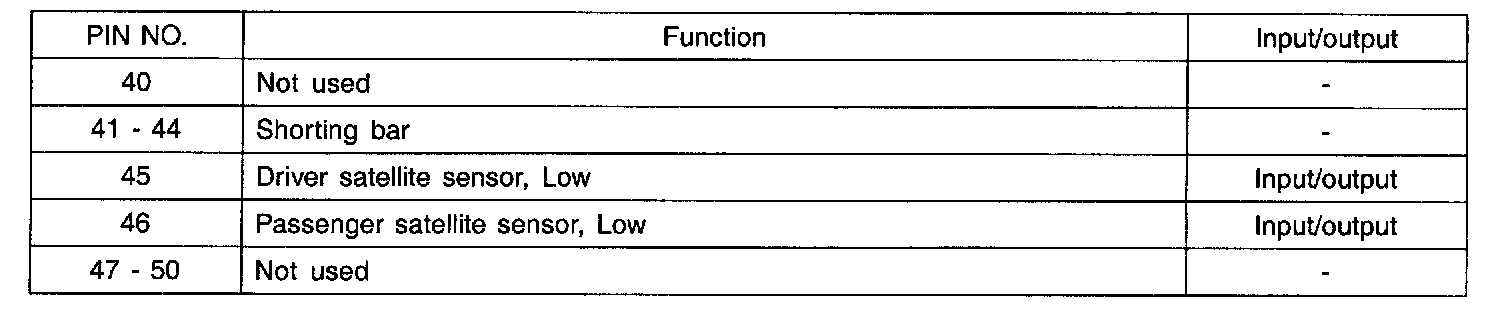

SRSCM Connector (2) (SRE-HMC) DAB + PAB + SAB + BPT (Pin Nos: 40 - 50) Part 2:
