Fluid - M/T: Service and Repair

REPLACEMENT OF TRANSAXLE GEAR OIL
Use HP Gear Oil SAE 75W/90 (API-GL-4).
1. Raise the vehicle and remove the drain plug and drain the transaxle oil.
2. Replace the gasket with a new one and install the drain plug.
3. Remove the oil filler plug.
4. Add the specified amount and type of oil into the filler hole.
Capacity: 2.43 US qt. (2.3 Lit, 2.1 Imp. qt.)

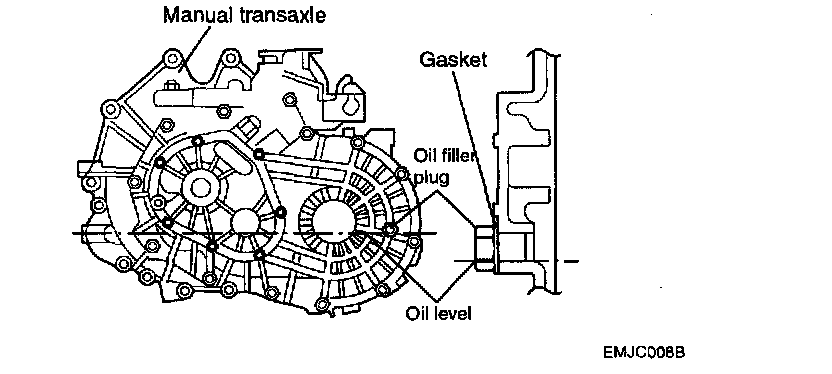

5. Oil level should be at the lower portion of the filler plug hole.
6. Install the oil filler plug and lower the vehicle.
Tightening torque: 29 - 34 Nm (290 - 340 kg-cm, 20 - 24 ft. lbs.)
7. Warm up the vehicle until the transaxle oil reaches its normal temperature, then check for leakage of transaxle oil.
