Fluid - M/T: Testing and Inspection

TRANSAXLE GEAR OIL INSPECTION
Inspect each component for evidence of leakage. Check the gear oil level by removing the oil filler plug. If the oil is contaminated, replace it with new oil.
1. Raise the vehicle.

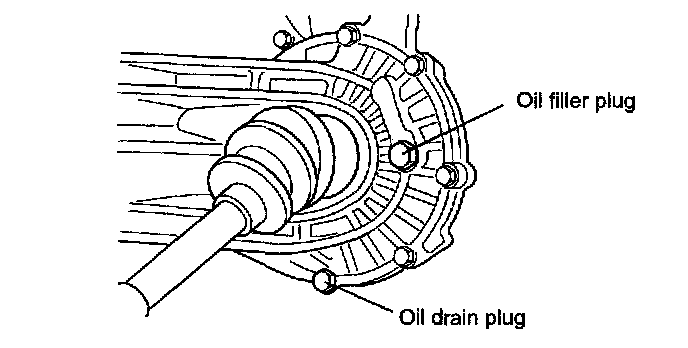

2. Remove the oil filler plug.
3. Check the oil level and refill it if necessary. Oil level should be at the lower portion of the filler plug hole.
4. Install the oil filler plug and lower the vehicle.
