Connector Locations

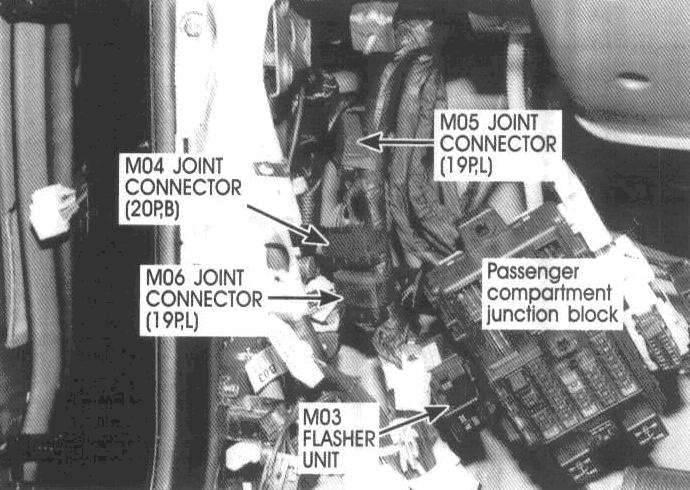

M04, M05, M06 Joint Connector, M03 Flasher Unit:

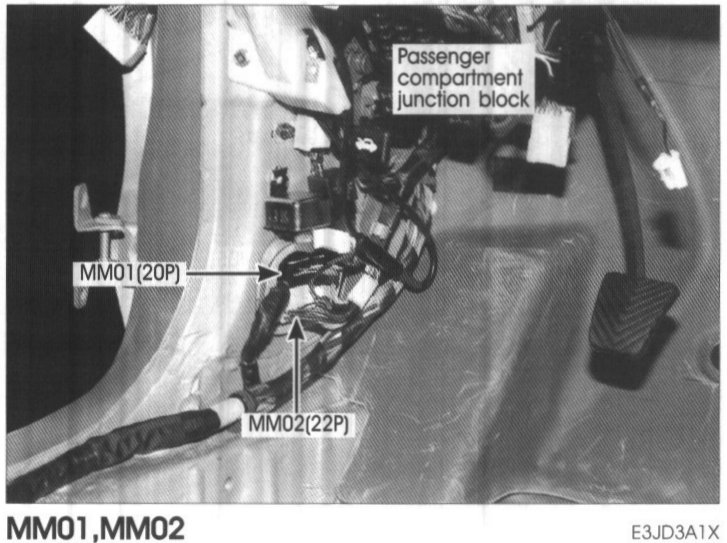

MM01, MM02:



EM05:



G07:

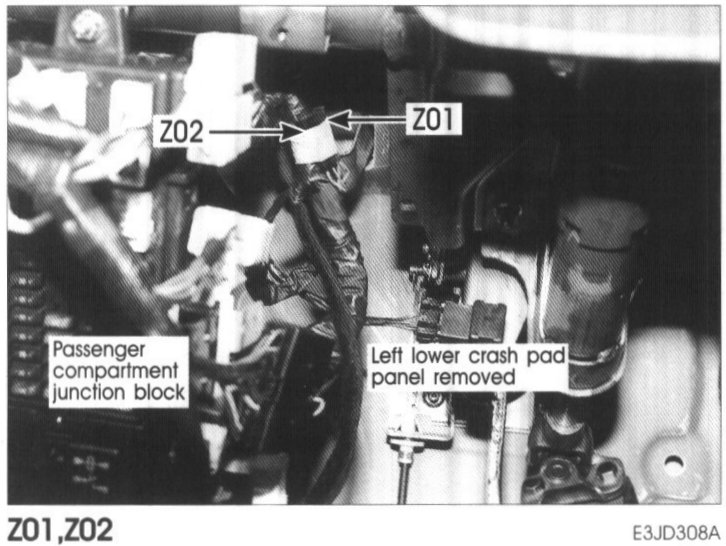

Z01, Z02:
