Air Bag Systems: Testing and Inspection

NOTE: HYUNDAI does not provide a procedure to retrieve SRS diagnostic trouble codes without a scan tool.

DIAGNOSIS WITH SCAN TOOL




CHECK PROCEDURES

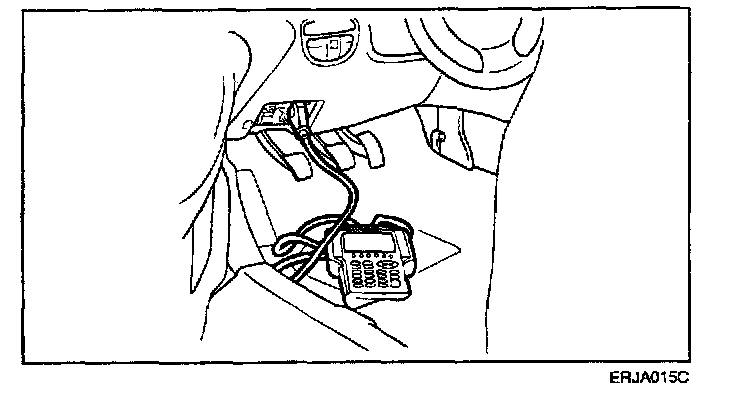

1. Connect the Hi-Scan Pro to the vehicle data link connector located underneath the dash panel.
2. Turn the ignition key to the "ON" position and turn on the Hi-Scan Pro
3. Check for diagnostic trouble codes.
4. If a fault code is found, then replace the appropriate component. Never attempt to repair the component.
5. If the Hi-Scan Pro finds that a component of the system is faulty, there is a possibility that the fault is not in the components but in the SRS wiring or connector.
