System Specifications


2.7/3.5 L V-6:






2003 2.7/3.5 L


2003 2.4 L Hyundai trans oil or Diamond ATF SP-3.

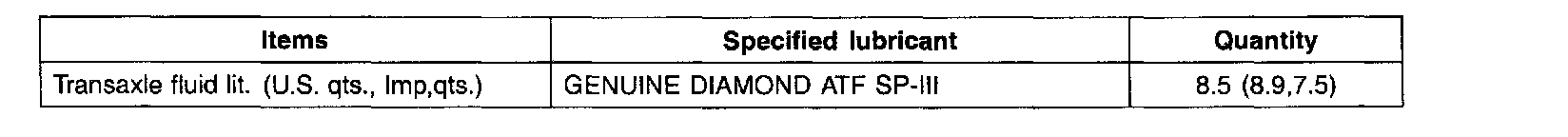

LUBRICATIONS

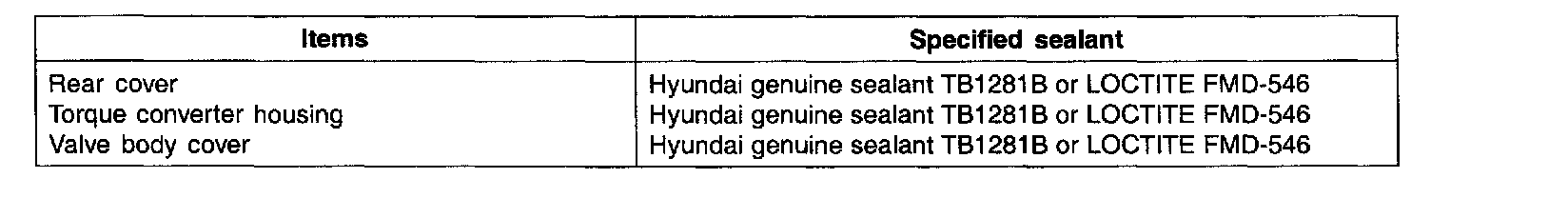

SEALANTS
