Exhaust System: Service and Repair

REMOVAL
REAR MUFFLER

CAUTION: Before removing or inspecting the exhaust system, ensure that the exhaust system is cool.

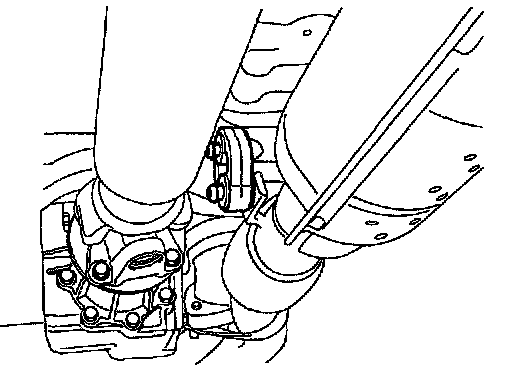

1. Disconnect the rear muffler from the front muffler.

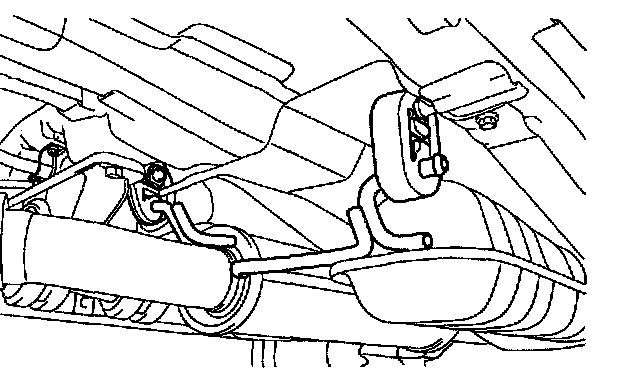

2. Remove the rubber hangers and the rear muffler.

FRONT MUFFLER (INCLUDING CATALYTIC CONVERTER)

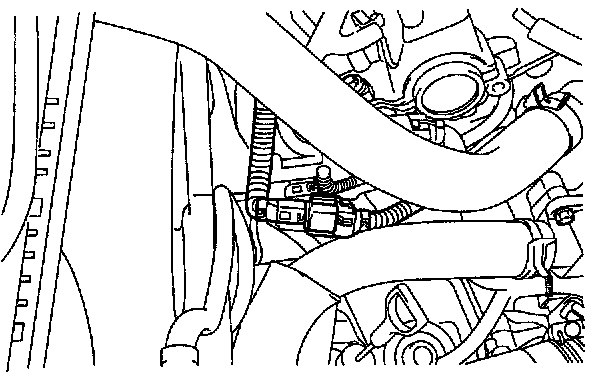

1. Disconnect the L/H near oxygen sensor.

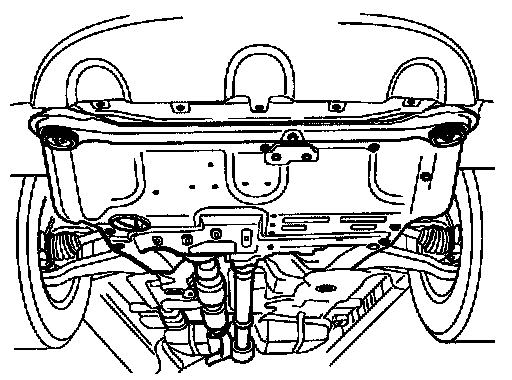

2. Remove the under cover.








3. Remove the front muffler bolts and nuts.

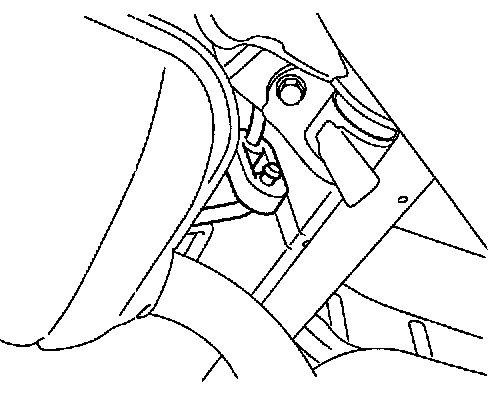

4. Disconnect from the hanger.

INSPECTION
1. Check the mufflers and pipes for leaks, corrosion and damage.
2. Check the rubber hangers for deterioration and cracks.

INSTALLATION
1. Temporarily install the front muffler, the catalytic converter assembly and the rear muffler in this order.

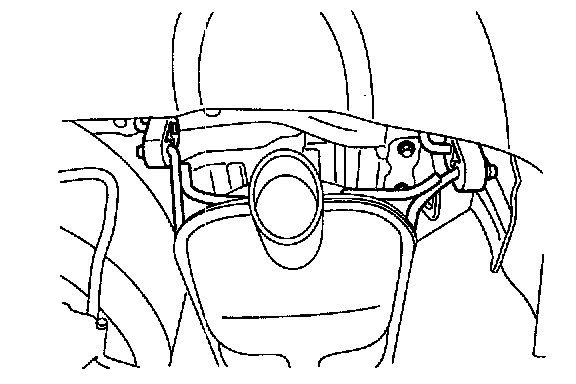

2. Install the rubber hangers so that they hang equally left and right.
3. Tighten the parts securely and then confirm that there is no interference with any components.
Tightening torque: 30 - 40 Nm (300 - 400 kgf-cm, 22 - 29.5 ft. lbs.)
