Fuel System - Fuel Temperature Sensor Information

Group
36 - ENGINE ELECTRICAL

Number
03-36-015

Date
06-2003

Model
Santa Fe 2003, Sonata 2003 and
350 2003

Subject
FUEL TEMPERATURE SENSOR

DESCRIPTION:

A new Fuel Temperature Sensor (FTS) has been introduced in the 2003 model year 2.4L and 3.5L Santa Fe 2.4L Sonata and XG350. The new sensor measures fuel temperature in the fuel tank. The ECM uses this information for the Evaporative Emissions Self Check.

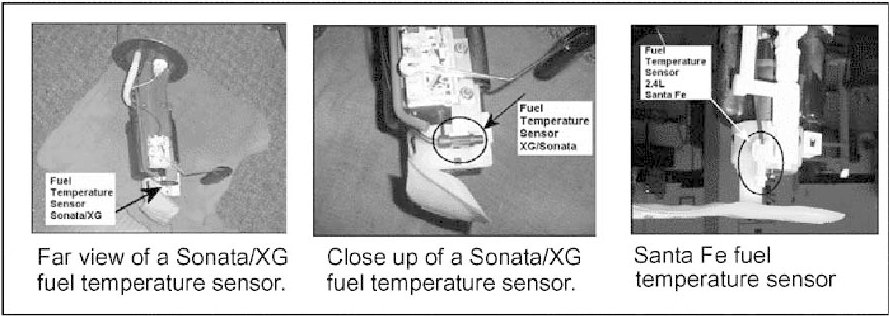

Fuel vapor pressure increases when fuel temperature increases. The ECM references the fuel temperature and indirectly compensates for the fuel vapor pressure during the evaporative emissions leak check. The FTS is located inside the fuel tank and is mounted to the fuel pump assembly.

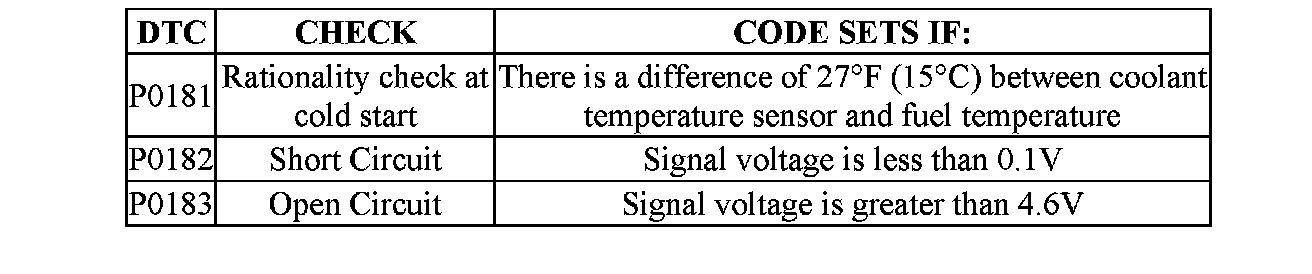

The ECM can set Diagnostic Trouble Codes (DTC) relating to the FTS.

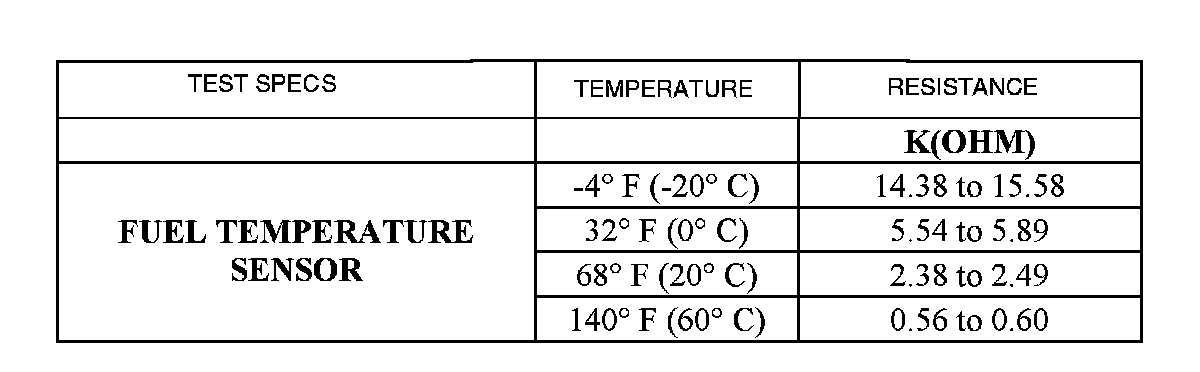

TEST SPECIFICATIONS








PART NUMBER INFORMATION:
