Engine Mounting

ENGINE MOUNTING

REMOVAL





Attach an engine hoist to the engine hooks, and raise just enough so that there is no pressure on the insulators.

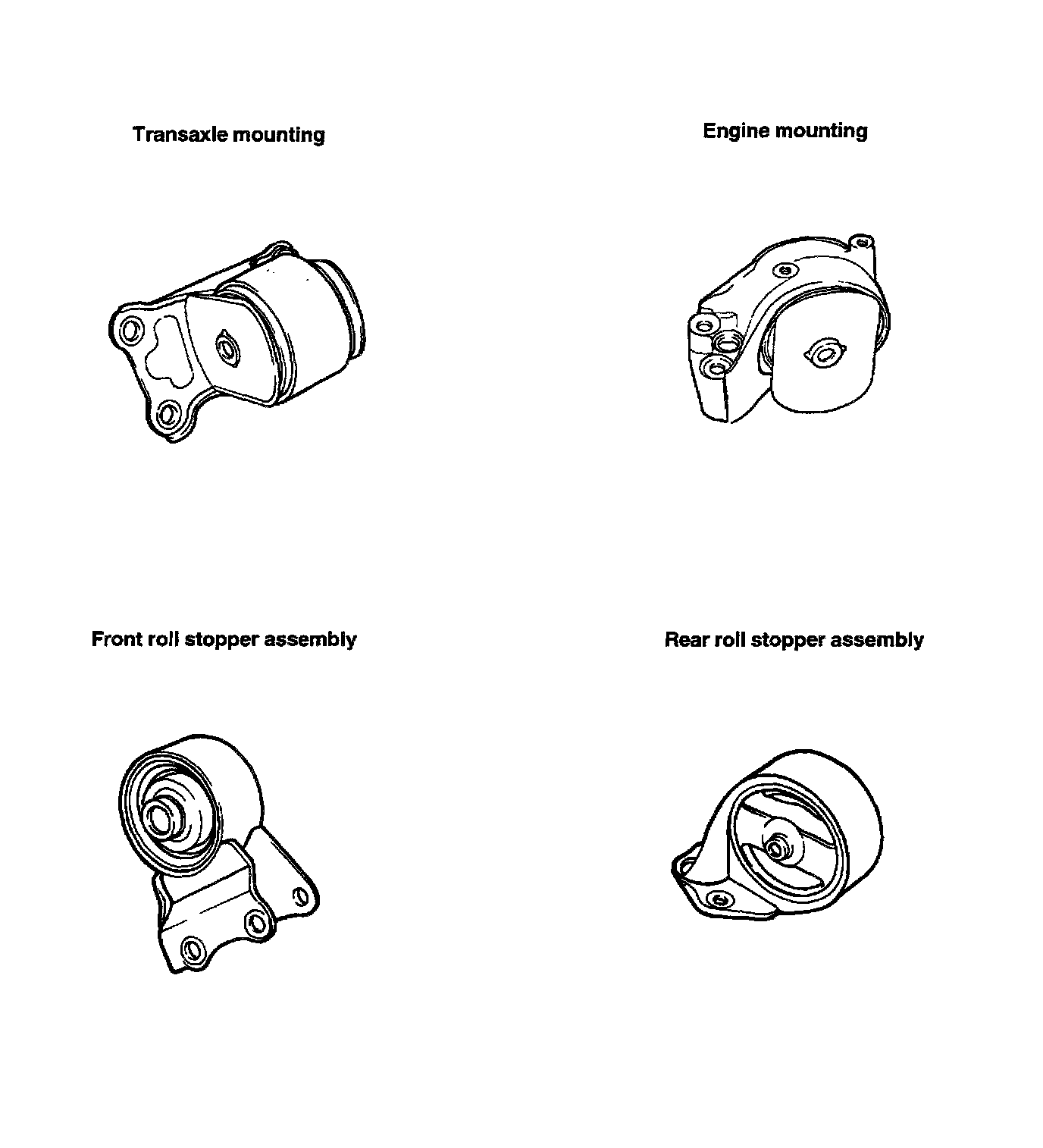

Engine Mounting
1. Remove the engine mount insulator bolts.
2. Remove the engine mount bracket from the engine.





Transaxle Mounting
1. Remove the transaxle mount insulator bolts.
2. Remove the transaxle mounting bracket from the transaxle.





Front Roll Stopper
Remove the front roll stopper bracket from the sub-frame.





Rear Roll Stopper
1. Remove the bolt from the rear roll stopper.
2. Remove the rear roll stopper from the subframe.





INSPECTION ITEMS
