Electrical Diagrams

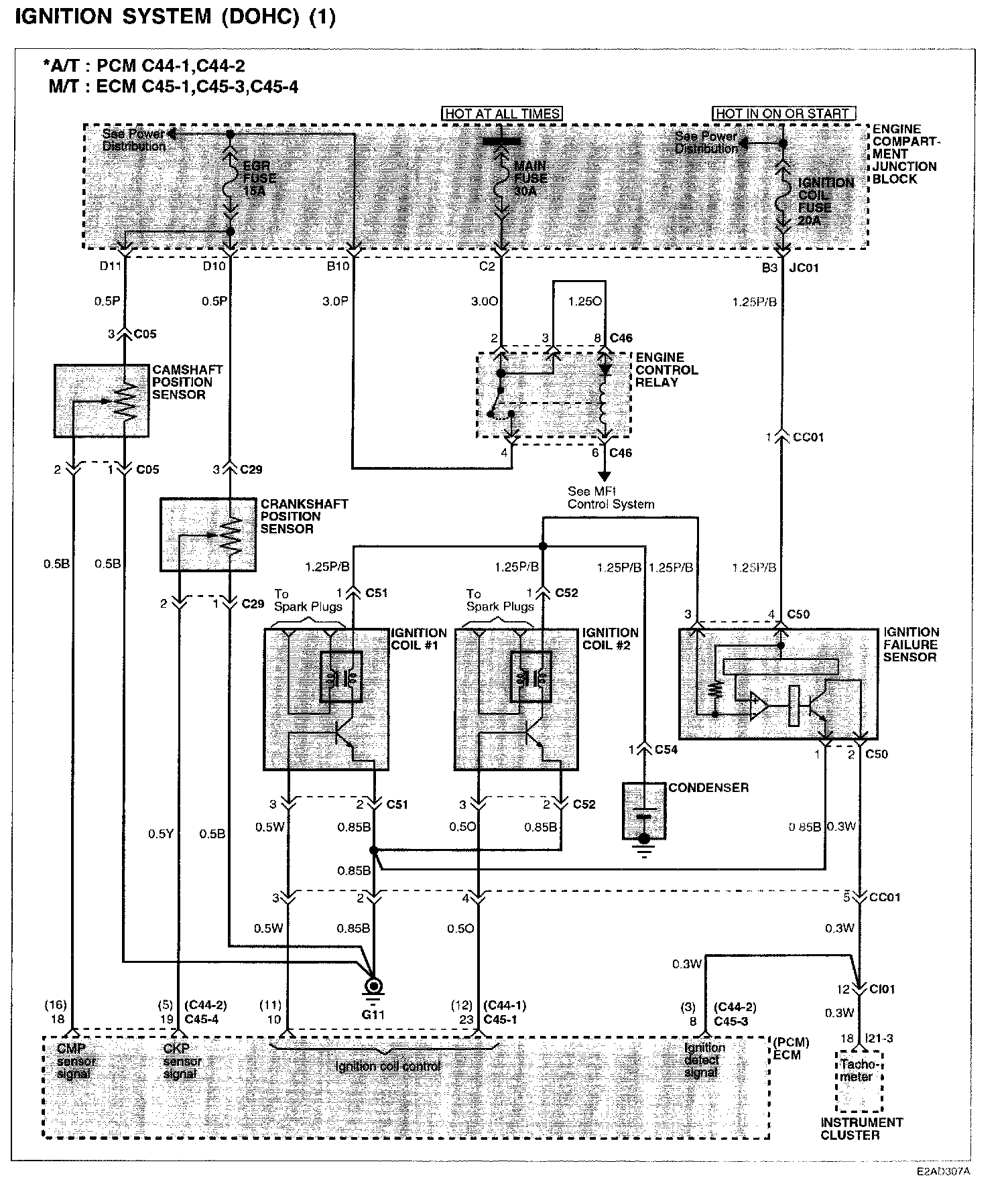

Ignition System (DOHC) (1):
Connector/Component Locations: The locations of connectors and components referred to within these diagrams can be found via the connector number at Vehicle Connector Locations.
Connector LocationsGround Locations: The locations of grounds referred to within these diagrams can be found via the ground number at Vehicle Ground Locations.
Ground Locations
