Bolt/Nut Coupling Type

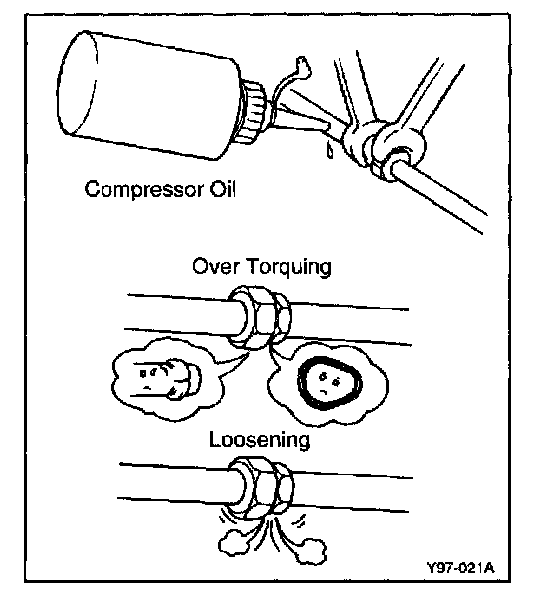

BOLT/NUT COUPLING TYPE 1.
Lubricate O-ring fittings with compressor oil for easy tightening and to prevent leaking of
refrigerant gas.
2.
Tighten the nut using two wrenches to avoid twisting the tube.
3.
Tighten the O-ring fittings to the specified torque.
