Front Bumper: Service and Repair

REMOVAL AND INSTALLATION




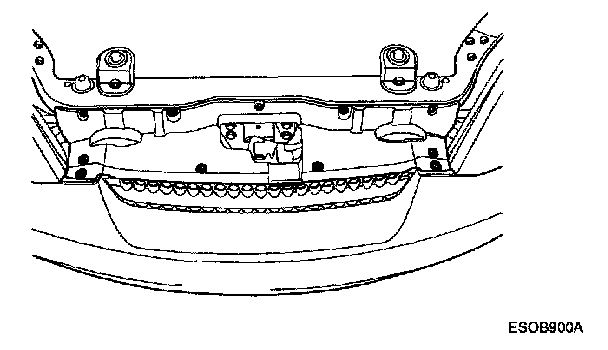

1. Remove the front bumper upper cover.

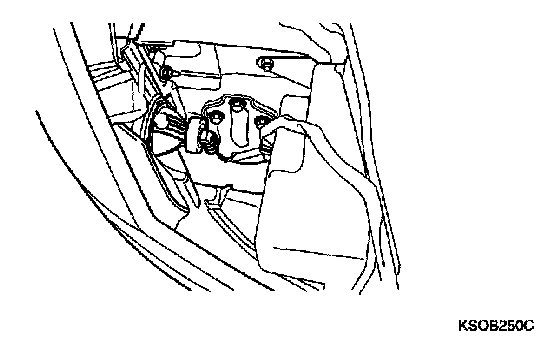

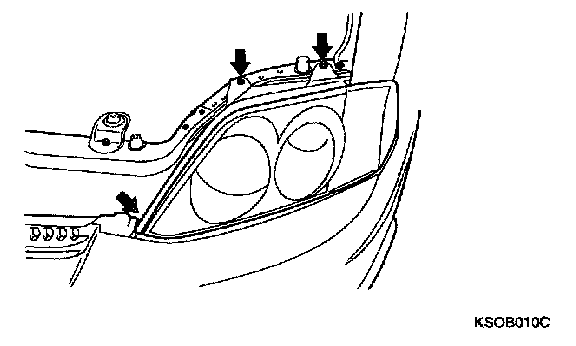

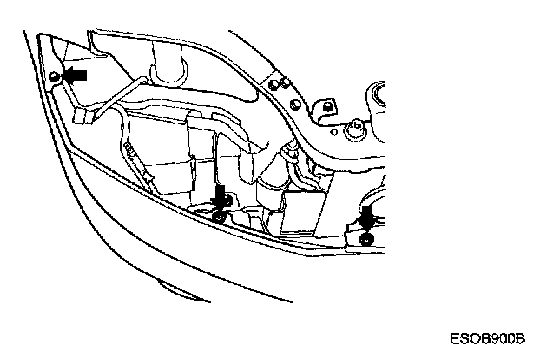

2. Loosen the head lamp mounting bolts, disconnect the connector, and remove the head lamp assembly.




3. Disconnect the fog lamp connectors.




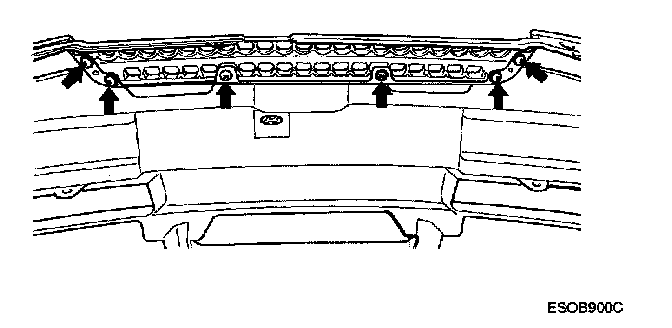

4. Remove the front bumper upper mounting bolt and screws.

Tightening torque: 4-6 Nm (40-60 kg.cm, 2.9-4.4 lb.ft)




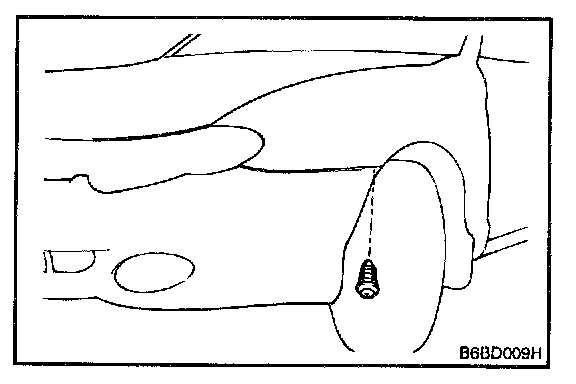

5. Remove the mounting screws in the corner of front bumper.

Tightening torque: 4-6 Nm (40-60 kg.cm, 2.9-4.4 lb.ft)




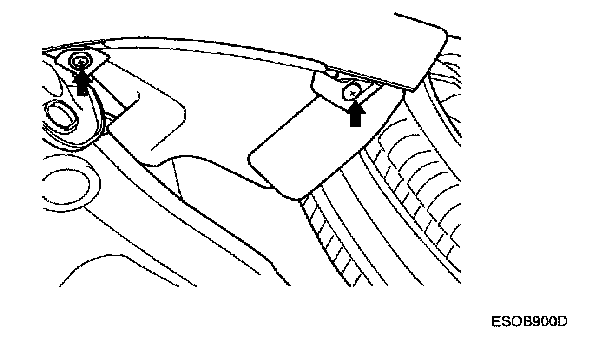

6. Loosen the front bumper lower mounting screws and remove the front bumper cover.




7. Remove the front bumper upper mesh.




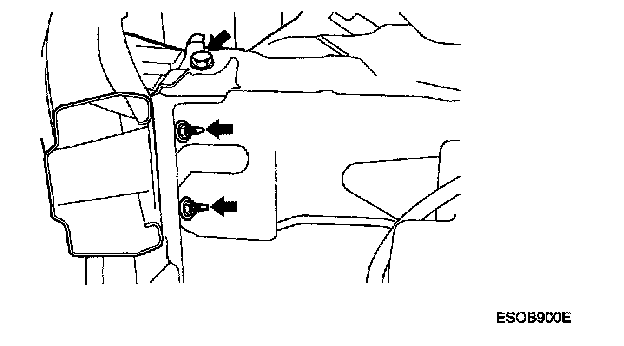

8. After loosening the front bumper beam stay mounting bolts and nuts and remove the front bumper beam slay.
9. Installation is the reverse of removal.
