Keyless Entry: Testing and Inspection

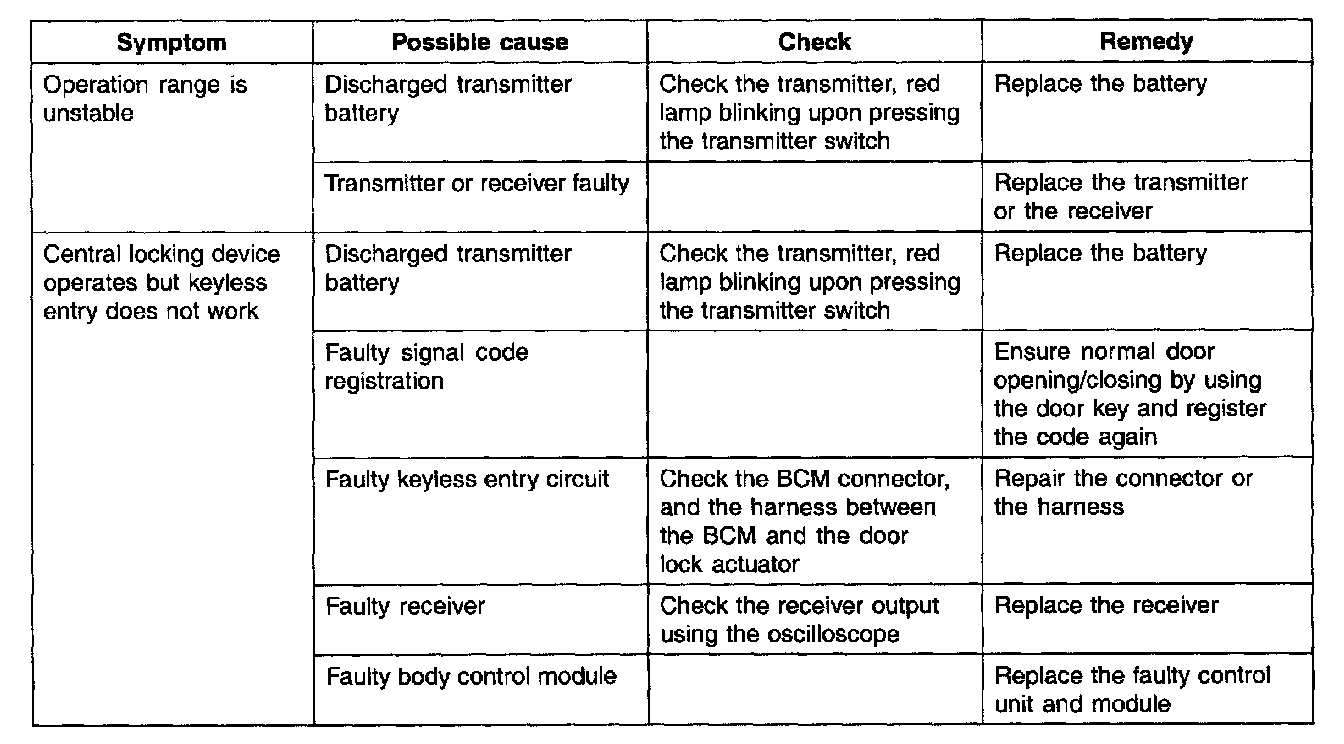

Troubleshooting - Keyless Entry System:

NOTE: If central lock and keyless entry do not operate simultaneously Systems other than the keyless entry may be considered faulty Then check related Systems.
