Power Locks - Service Manual Update

Group
90 - ELECTRICAL

Number
03-90-003

Date
02-2003

Model
Tiburon 2003

Subject
2003 TIBURON POWER DOOR LOCK ACTUATOR
ETM AND SHOP MANUAL CORRECTION

DESCRIPTION:

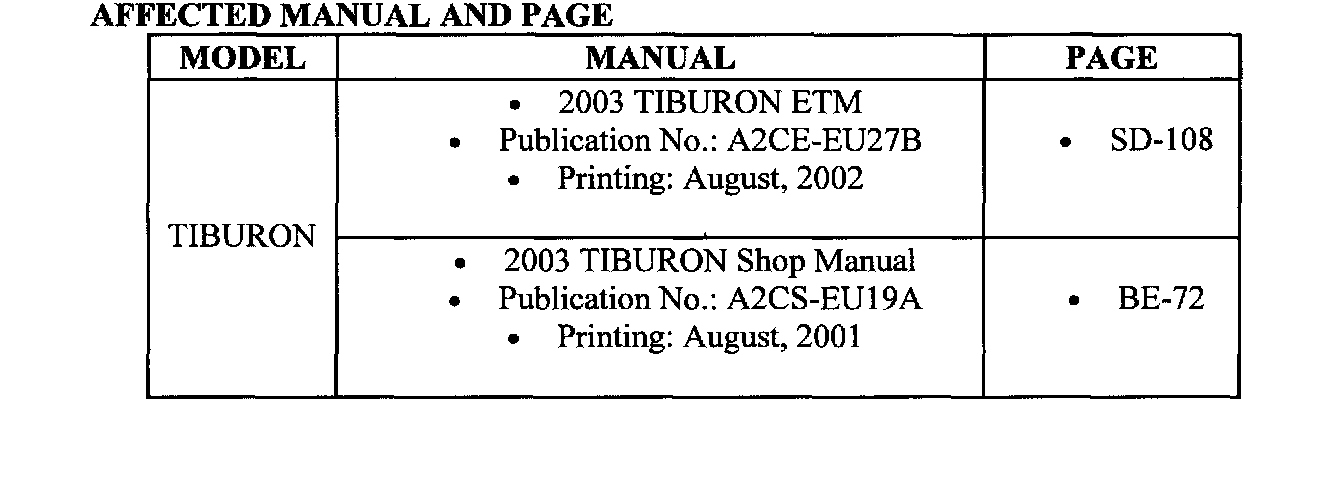

Included are revised pages for the 2003 MY TIBURON Electrical Troubleshooting Manual (ETM) and Shop Manual that have been corrected for the following reasons:

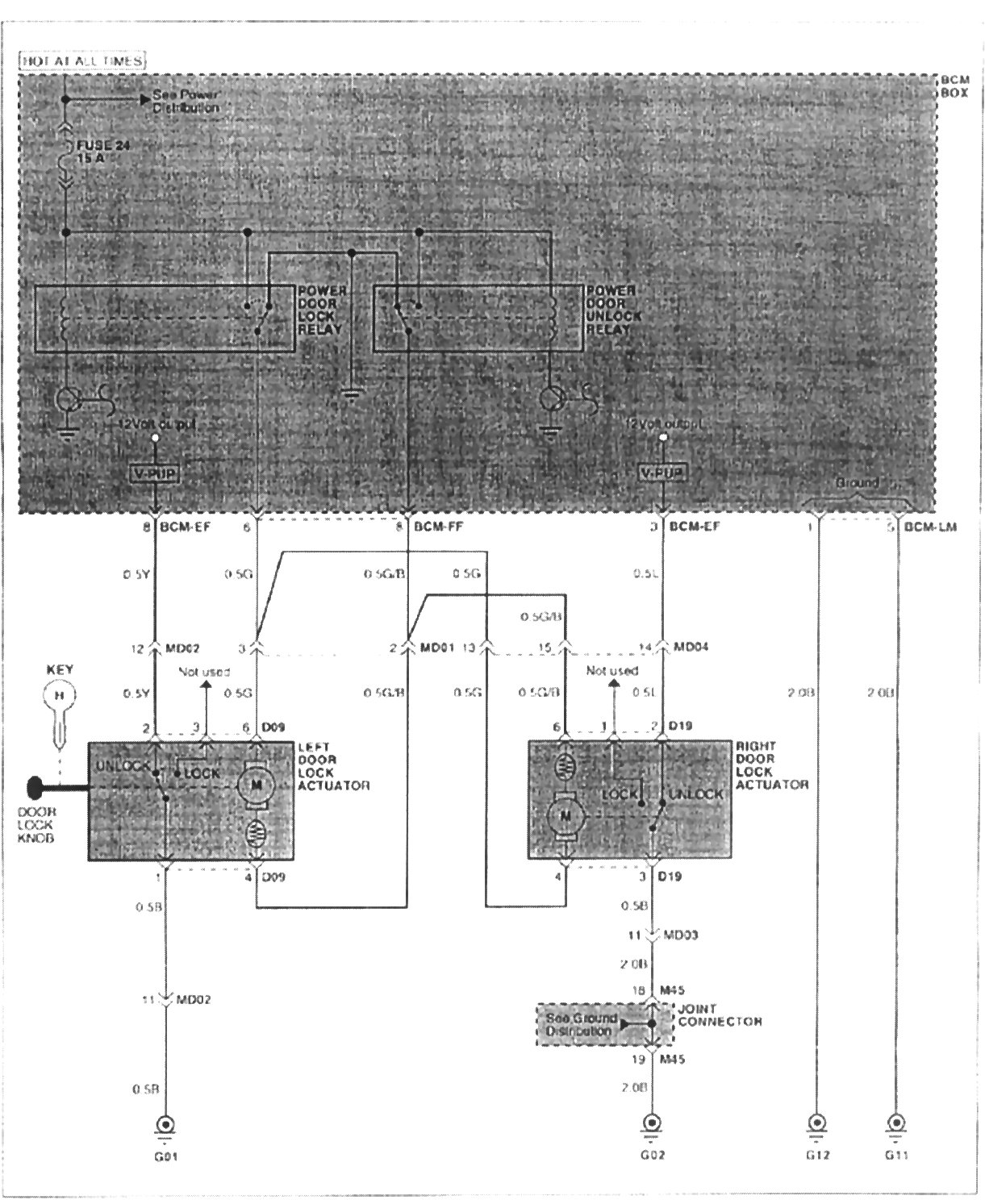

^ The 2003 TIBURON ETM power door lock actuator schematic is not correct.

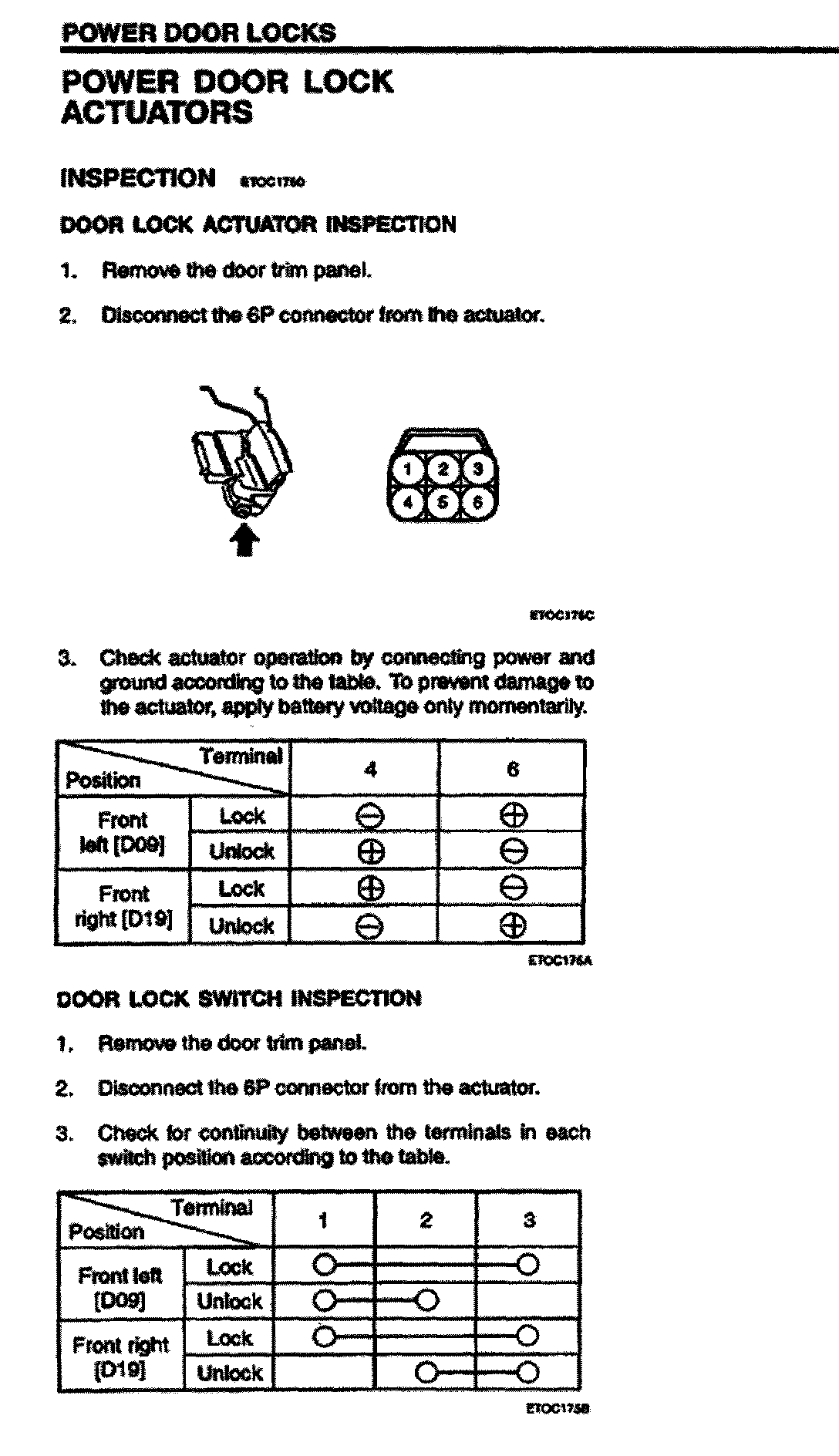

^ The power door lock actuator service information on page BE-72 of the TIBURON Shop Manual does not include diagnostic information for the door lock switch circuit.











Please record this TSB number at the bottom of the appropriate ETM and Shop Manual pages for future reference.
