Disassembly

CAUTION: Wear gloves to remove and install the mirror holder.

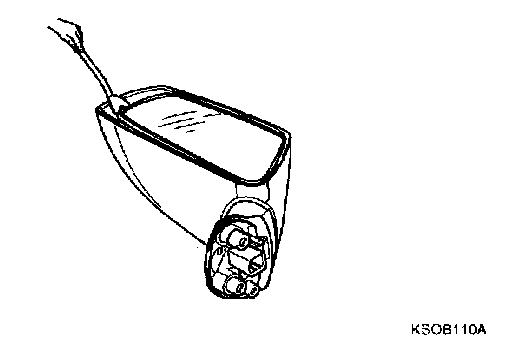

1. Insert a flat tip screwdriver between the outside rear view mirror holder and mirror assembly.

CAUTION: When prying with a flat tip screwdriver, wrap it with a shop towel to prevent damage.

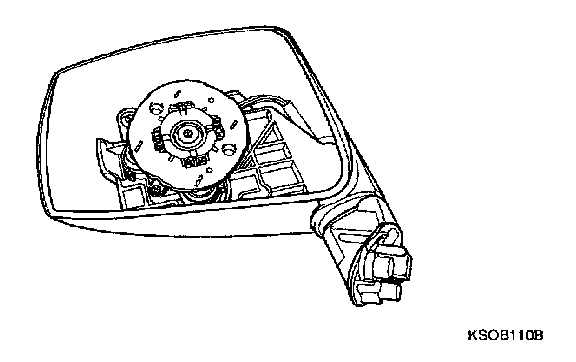

2. Remove the outside rear view mirror actuator from outside rear view mirror housing.
3. Installation is the reverse of removal.
