Removal

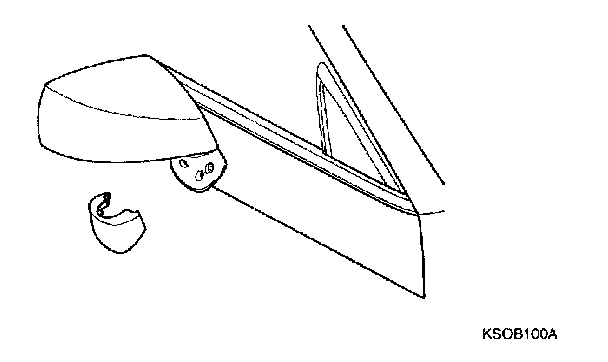

1. Remove the outside rear view mirror cover.

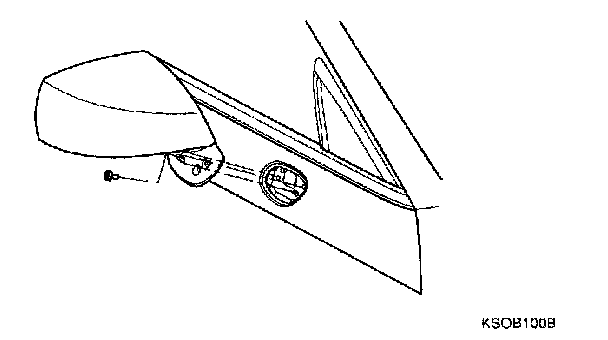

2. Loosen the mounting bolts, disconnect the connector and then remove the outside rear view mirror.

Tightening torque: 7-11 Nm (70-110 kg.cm 5-8 lb.ft)

3. Installation is the reverse of removal.
