Front Seat

REMOVAL AND INSTALLATION

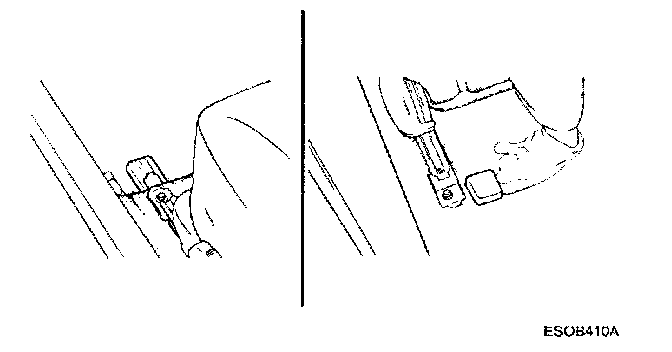

1. Pull out front seat mounting cover and remove the bolts.

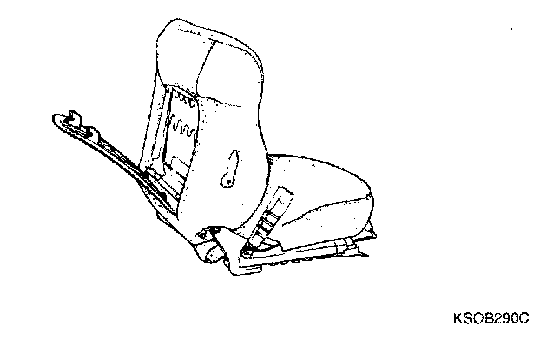

2. Remove the front seat assembly.

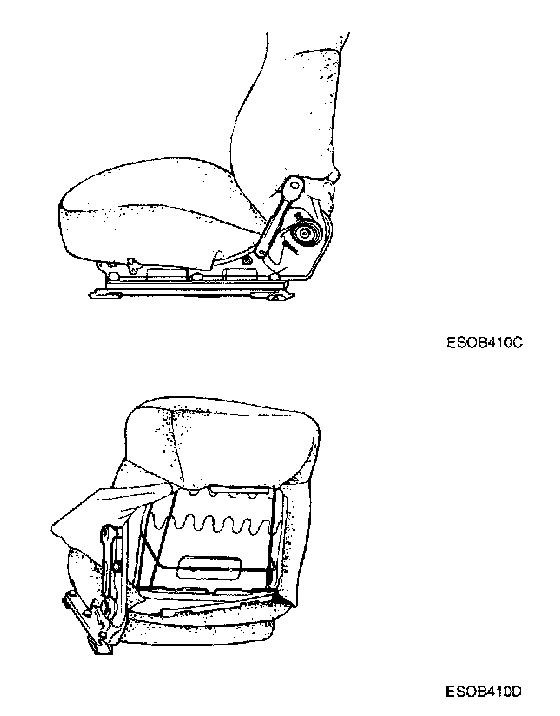

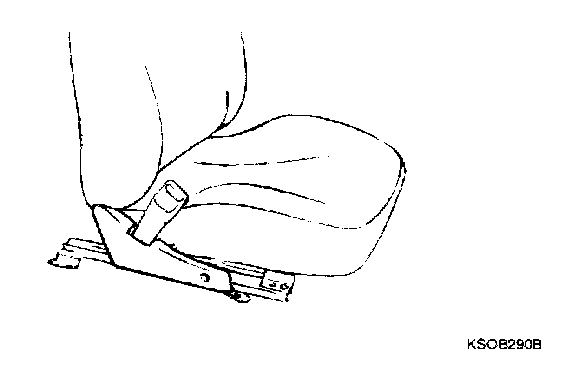

3. Remove the seat reel inner control lever and seat cushion control knob.
Remove the mounting screws from the shield cover.

4. Remove the front seat back board.

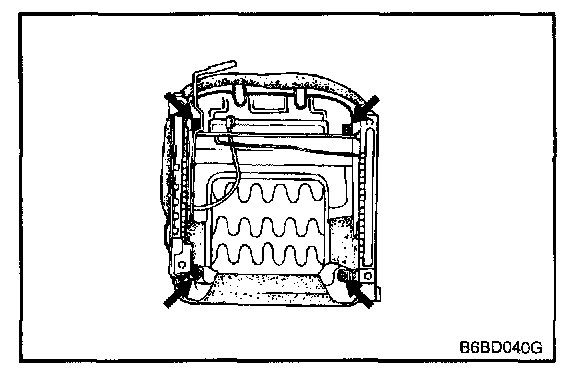

5. Remove the mounting bell from the front seat back.

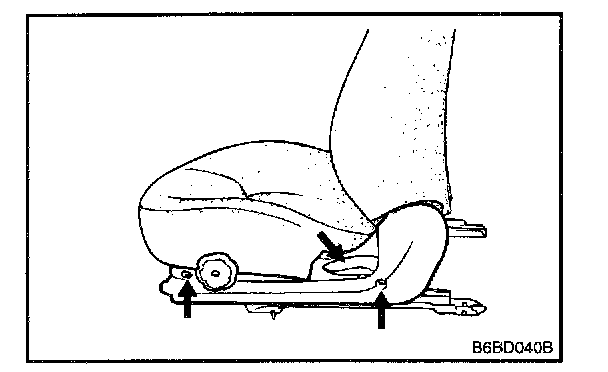

6. Remove the 4 bolts mounted under the seat to remove the front seat track.
7. Installation is the reverse of removal.
