Rear Seat

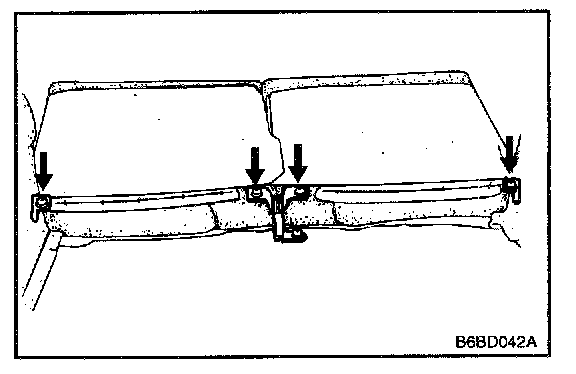

REMOVAL AND INSTALLATION 1.Remove the mounting bolts and bracket from the rear
seat back.
Tightening torque:
17-26 Nm (170-260 Kg.cm, 12.2-18.7 lb.ft) 2.

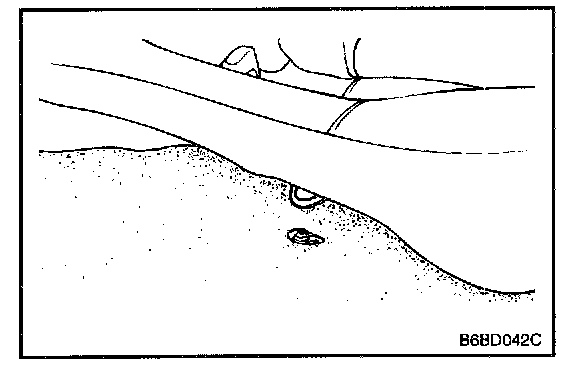

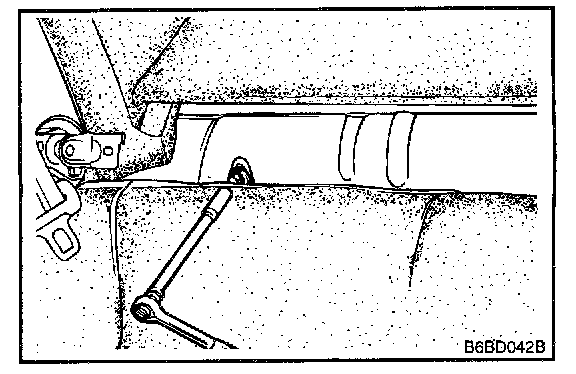

Remove the mounting bolts from the rear seat cushion.
Tightening torque:
17-26 Nm (170-260 Kg.cm, 12.2-18.7 lb.ft) 3.
Installation is the reverse of removal.
