Wheel Speed Sensor: Service and Repair

REMOVAL
FRONT WHEEL SPEED SENSOR

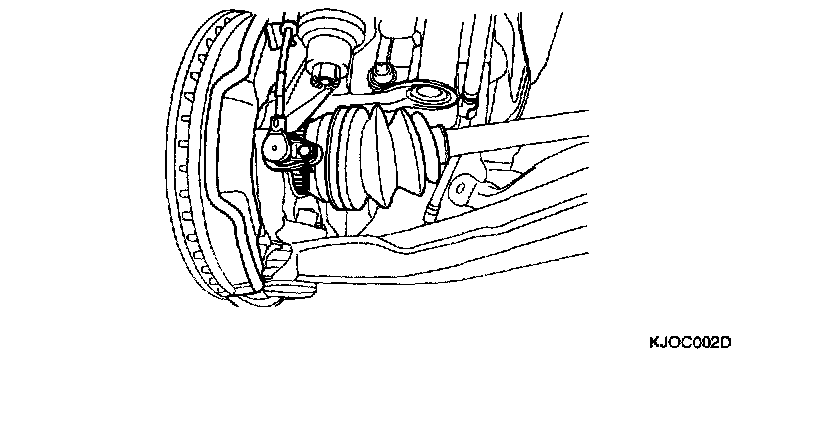

1. Remove the front wheel speed sensor mounting bolt.





2. Remove the front wheel speed sensor after disconnecting the wheel speed sensor connector.

REAR WHEEL SPEED SENSOR





1. Remove the rear wheel speed sensor mounting bolt.

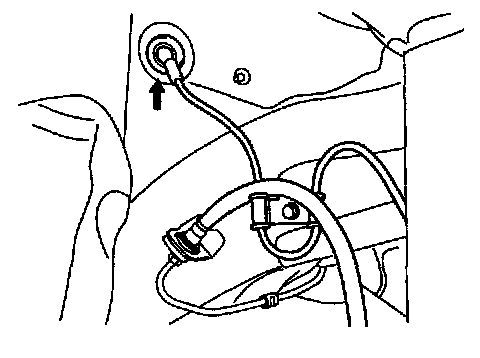

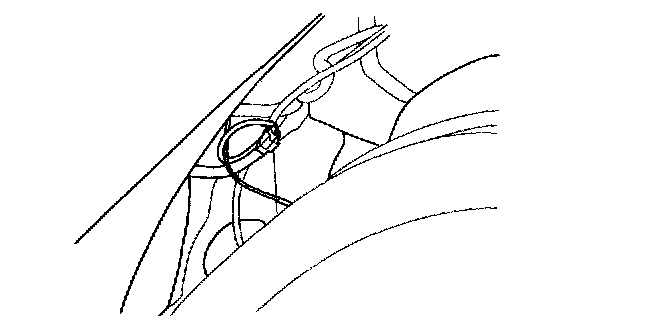

2. Remove the luggage trim and disconnect the wire connector from the rear wheel speed sensor.

INSPECTION

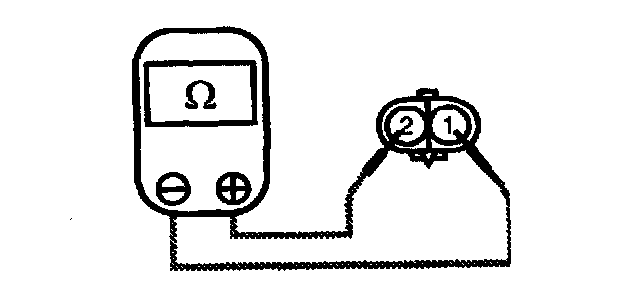

1. Connect an ohmmeter between the wheel speed sensor terminals and measure the resistance.
Service standard Front, Rear: 1,385 ± 110 Ohms
2. Connect a voltmeter between the wheel speed sensor terminals and measure the voltage by turning the wheel.





NOTE: Set the voltmeter to measure AC voltage. Service standard: AC voltage detected.
