Condenser HVAC: Testing and Inspection

REMOVAL
1. Discharge refrigerant from the refrigeration system.
2. Discharge engine coolant from the radiator.

3. Disconnect the coolant inlet and outlet hoses from the radiator.
4. Remove the radiator assembly.
5. Disconnect the discharge hose and the liquid tube.

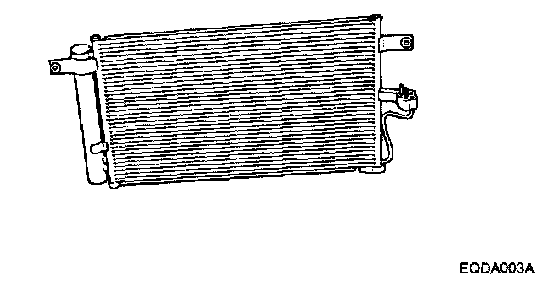

6. Remove the condenser mounting bolts and the condenser assembly.
