Ambient Light Sensor: Testing and Inspection
INSPECTION 1.
Detach the auto light sensor in the upper crash pad.
2.

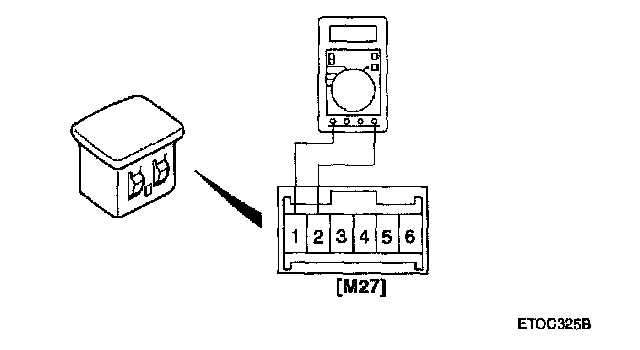

Check the continuity between terminal 2(+) and terminal 1 (-).
3.

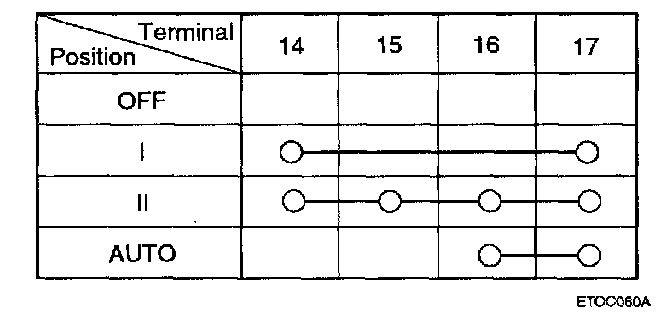

Check the continuity between the terminals while operating the switch.

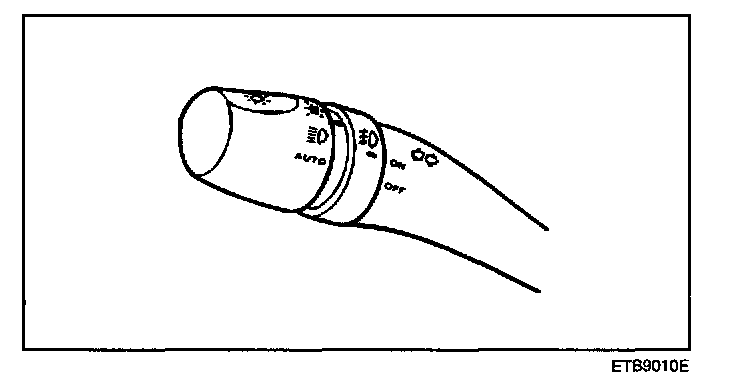

Lighting Switch [MO1-2]:
AUTO LIGHT SWITCH [M01-2]
