Headlamp: Service and Repair

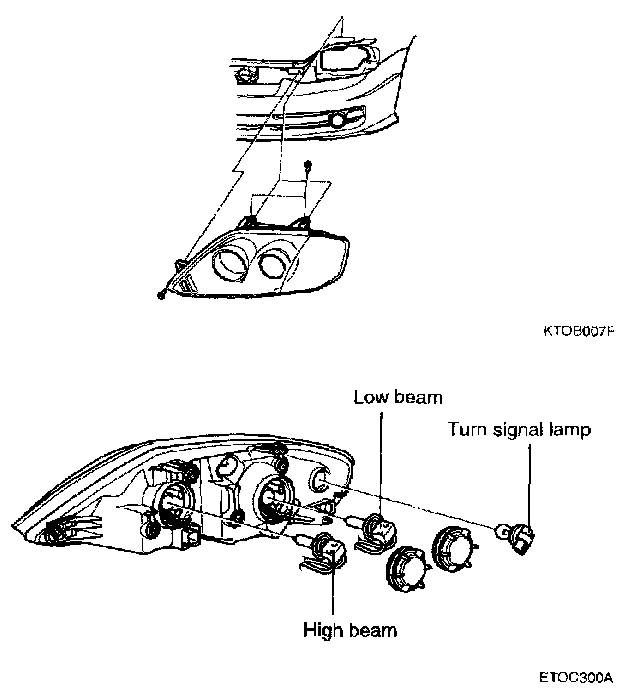

HEAD LAMP/TURN SIGNAL LAMP 1.
Disconnect the negative battery terminal.
2.

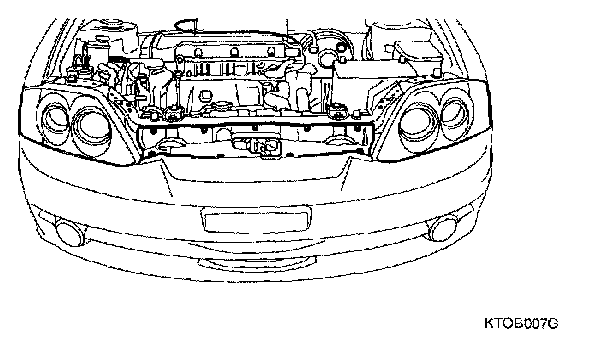

Remove the front bumper upper cover.
3.
Remove the head lamp and
turn signal lamp mounting bolts (3EA) and remove the lamp assembly.
4.
Installation is the reverse of removal.
