Sunroof / Moonroof Module: Testing and Inspection

1. Pull down the rear headliner.

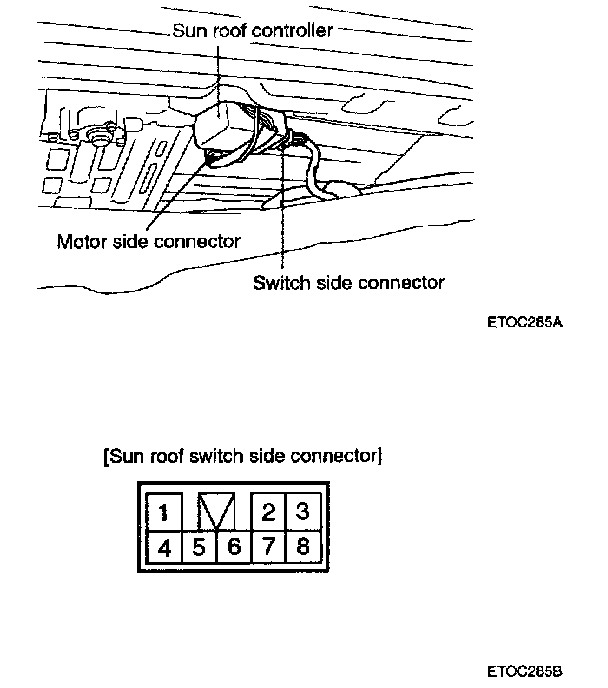

2. Disconnect the sun root switch side connector from the sun roof controller.
3. Insert a probe of test lamp to harness side connector terminal No.6 and ground the other probe with ignition switch ON.
OK: Test lamp "ON"
4. Insert a probe of test lamp to harness side connector No.4 and ground the other probe.
OK: Test lamp "ON"
5. Apply the battery voltage to the terminal No.1.
OK: Test lamp "ON"
6. After inspection of wiring harness, it sun roof controller is not operate normally, replace the sun roof controller.
