System Specifications

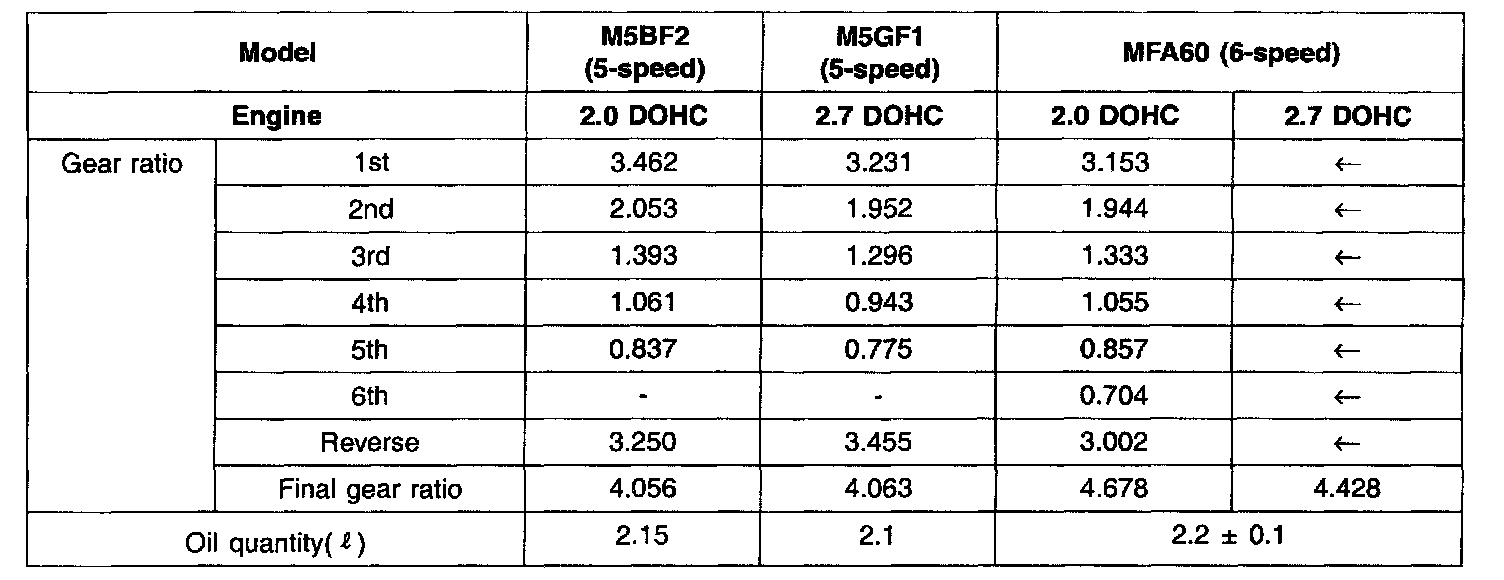

SPECIFICATIONS (M/T)

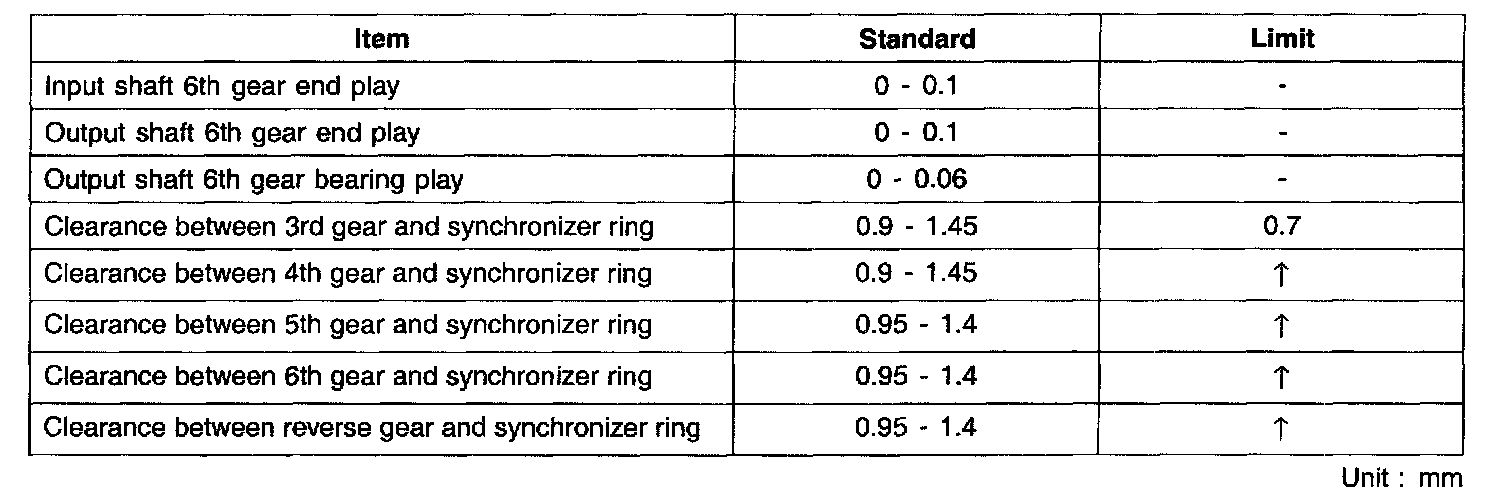

SERVICE STANDARD





(6-SPEED M/T)

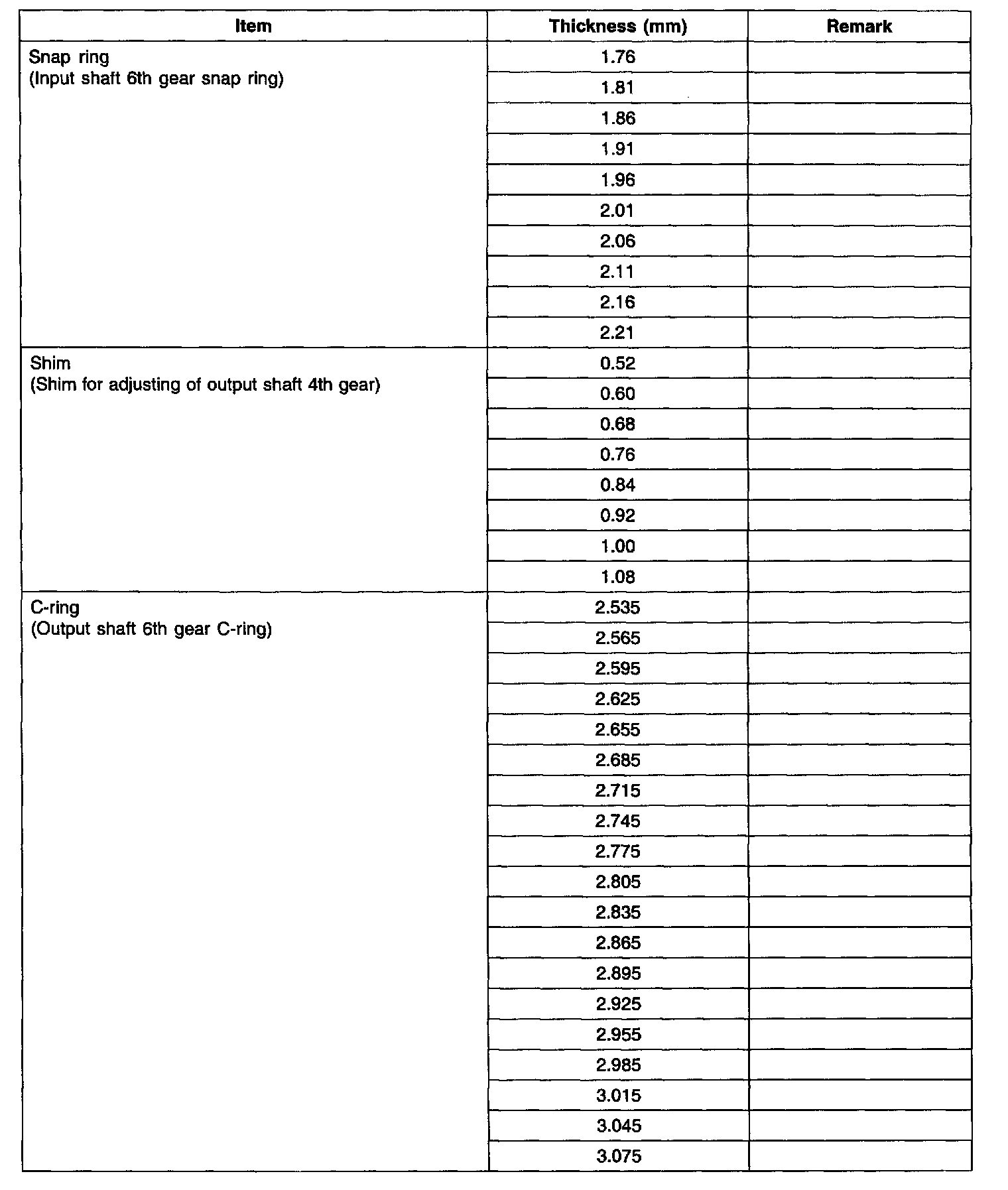

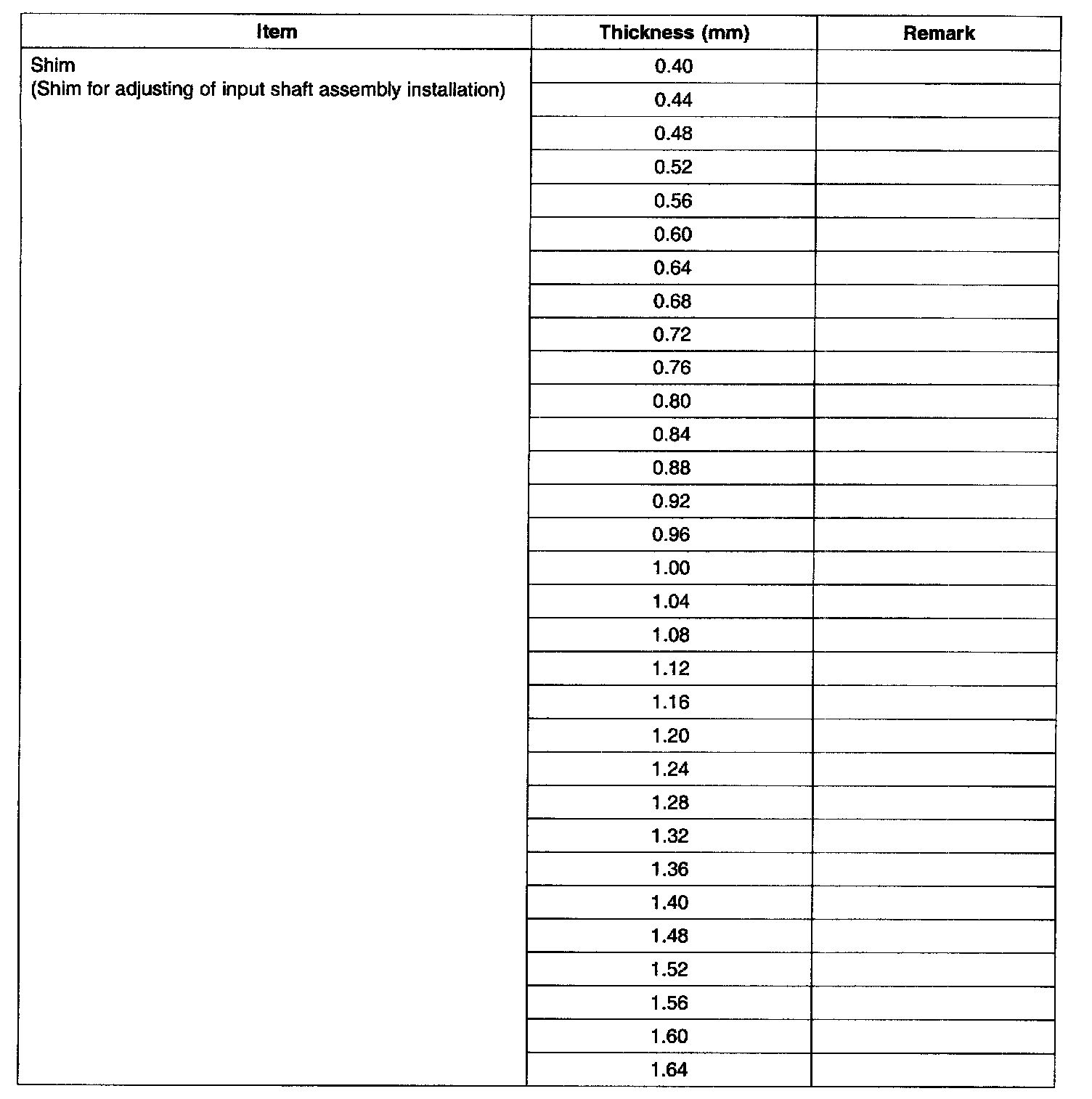

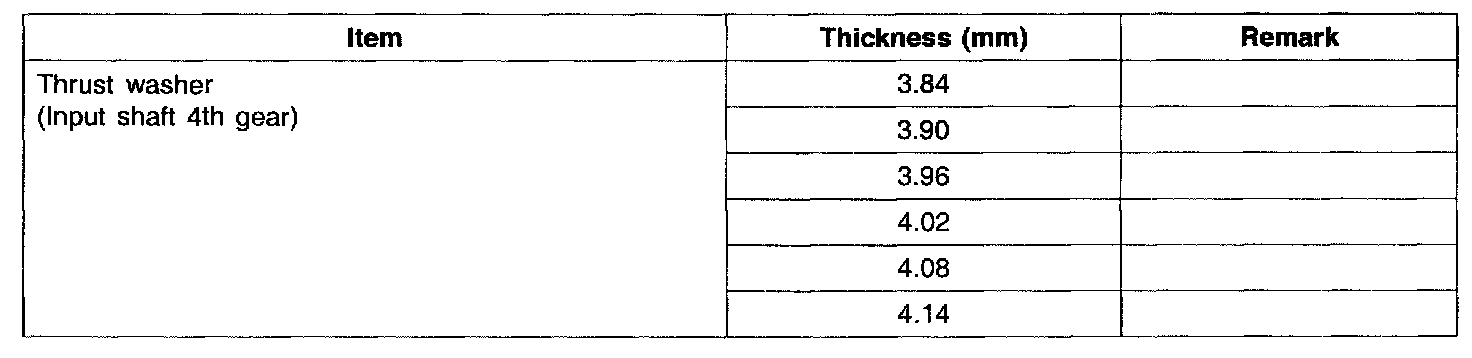

SPACER (6-SPEED M/T)

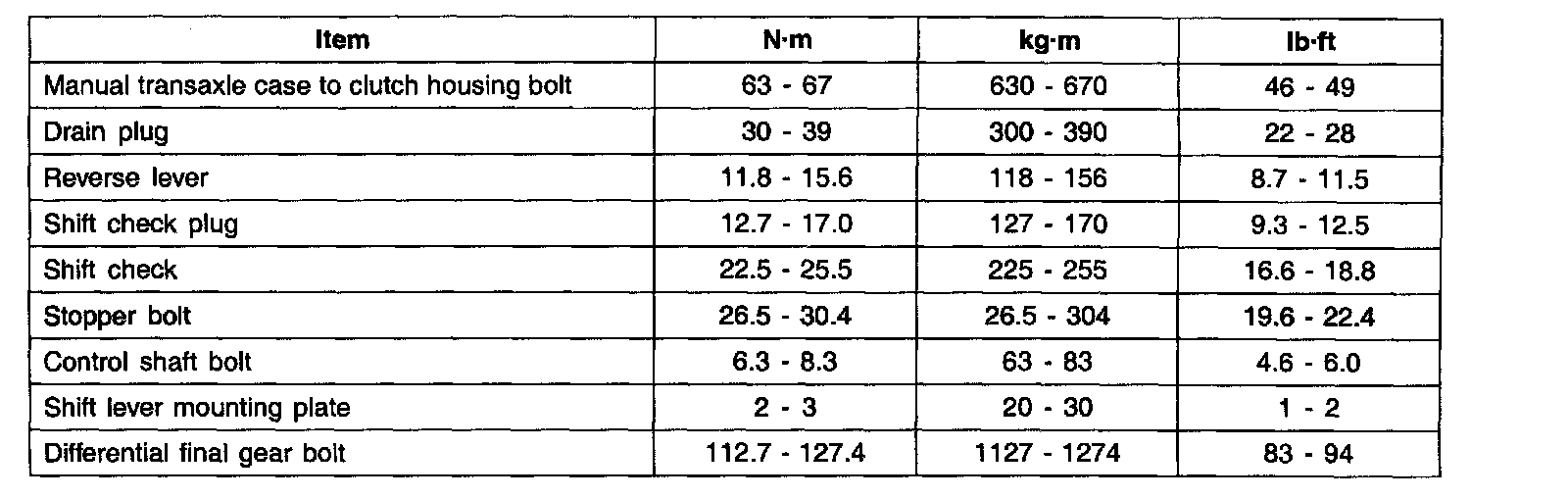

TIGHTENING TORQUE (6-SPEED M/T)
