Battery Visual Inspection (1)

Battery Visual Inspection (1):

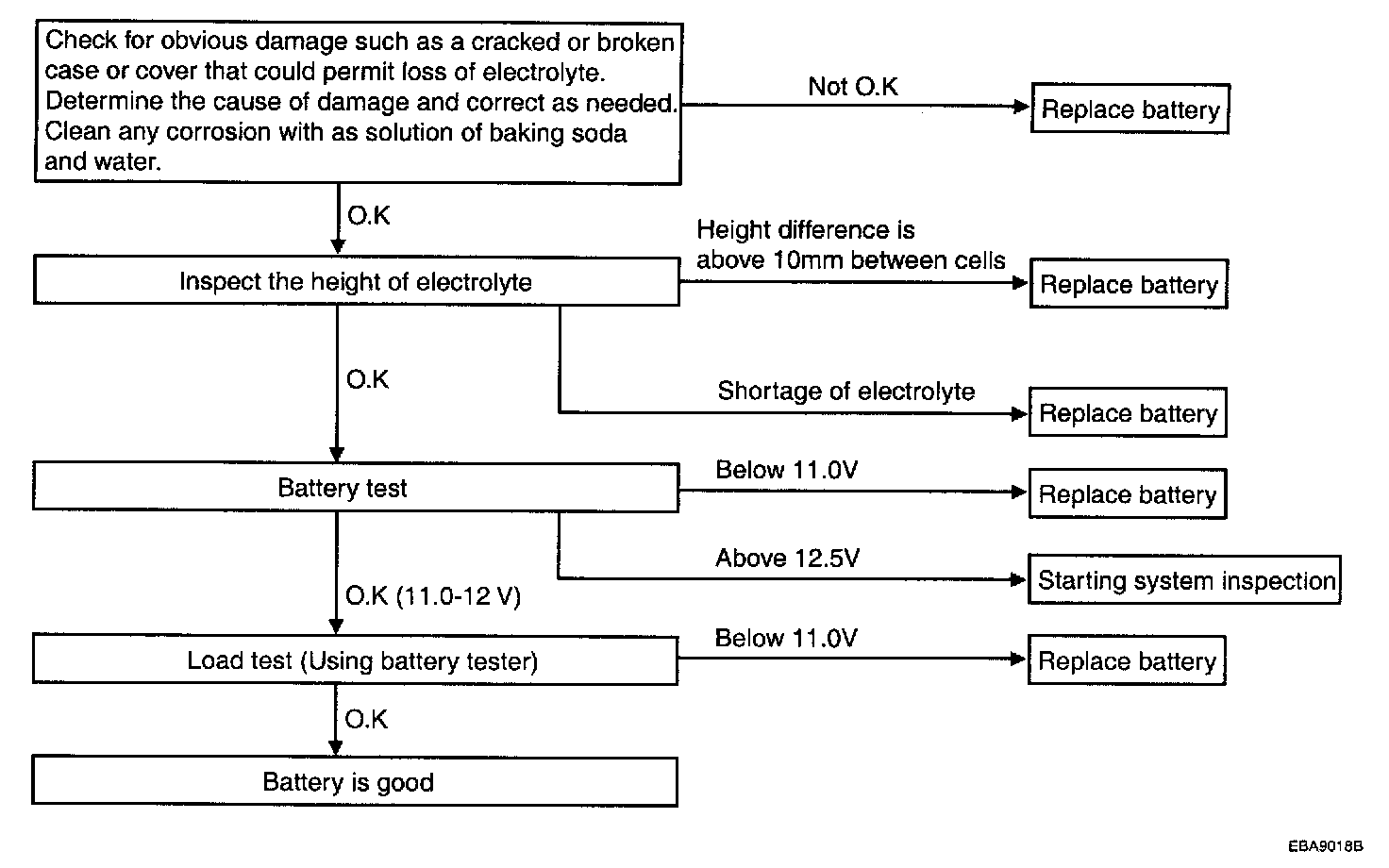

1. CHECKING FLOW

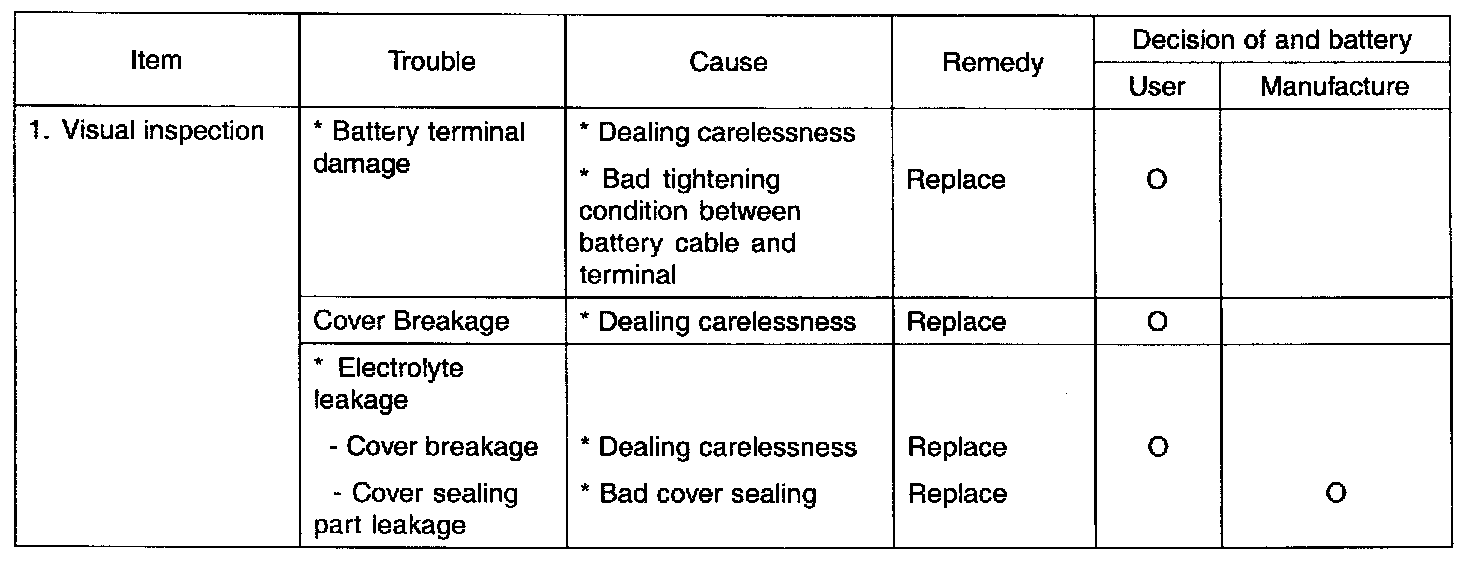

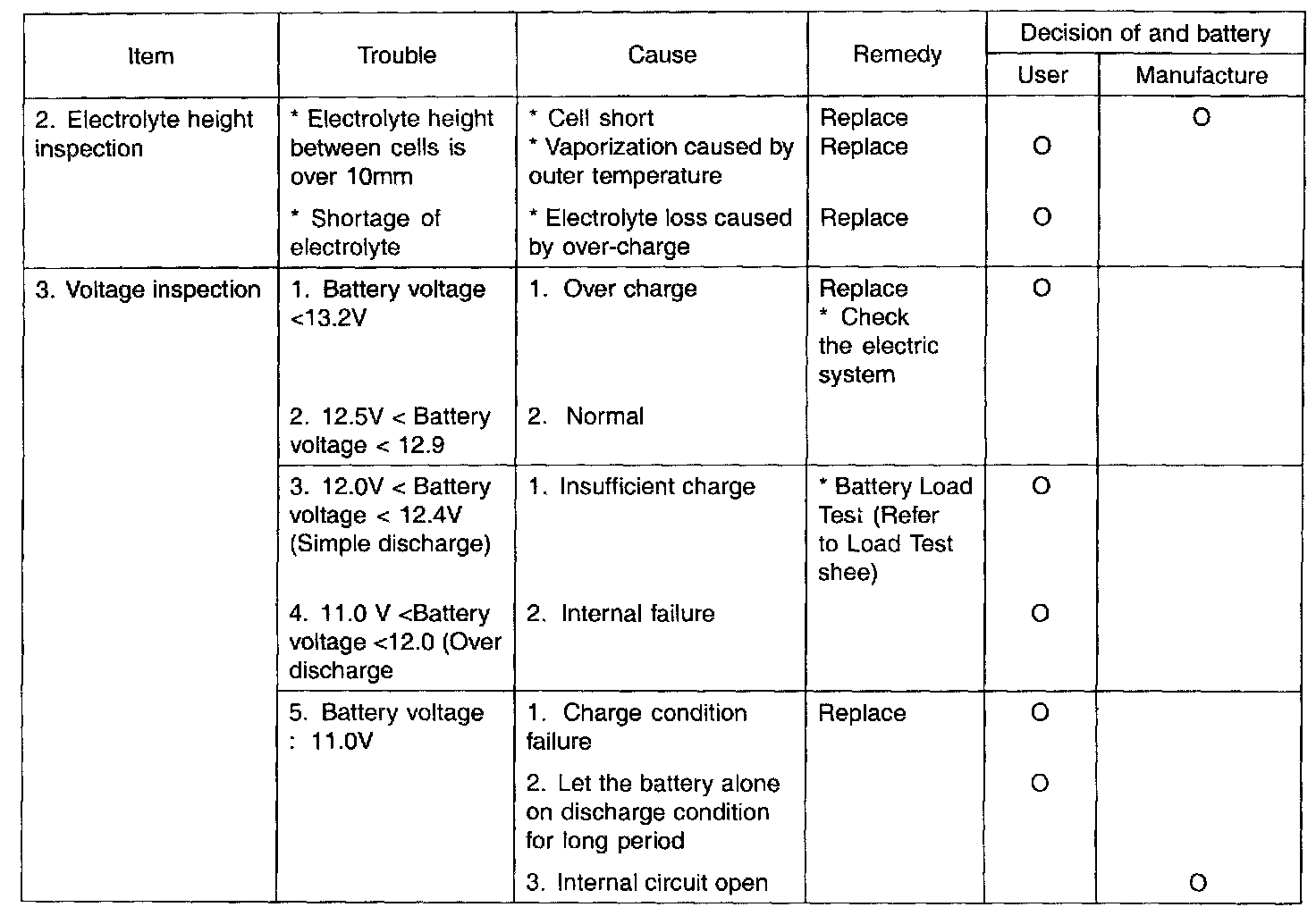

2. CHECKING SHEET




3. LOAD TEST
1. When discharging the battery during 15 seconds at half currency of C.C.P, the voltage of battery should be over the voltage as shown.
2. When the voltage is not within specification, test 2nd load test again, and if not, do the recharge.
3. If the battery voltage (left alone within 2 hours after re-charging) is over 12.5 V and the voltage after load test is over the standard value, this battery can be used.
