Low-Reverse Brake End Play Adjustment

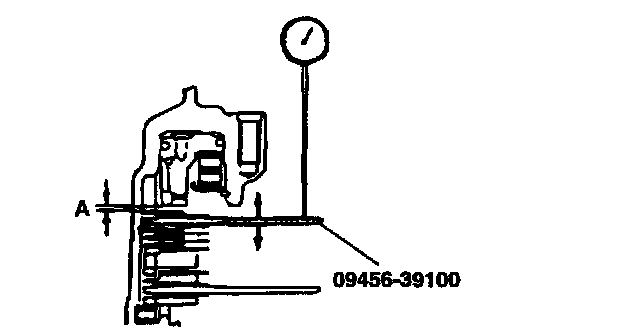

LOW-REVERSE BRAKE END PLAY ADJUSTMENT Reverse the transmission and install a dial gauge. Move the special tool up and down to measure the end play.
Standard value:
1.35 - 1.81 mm Select a pressure plate whose thickness is within the following value. [A (moving amount) + thickness of the special tool -1.81] to [A removing amount) + thickness of the special tool - 1.35].
