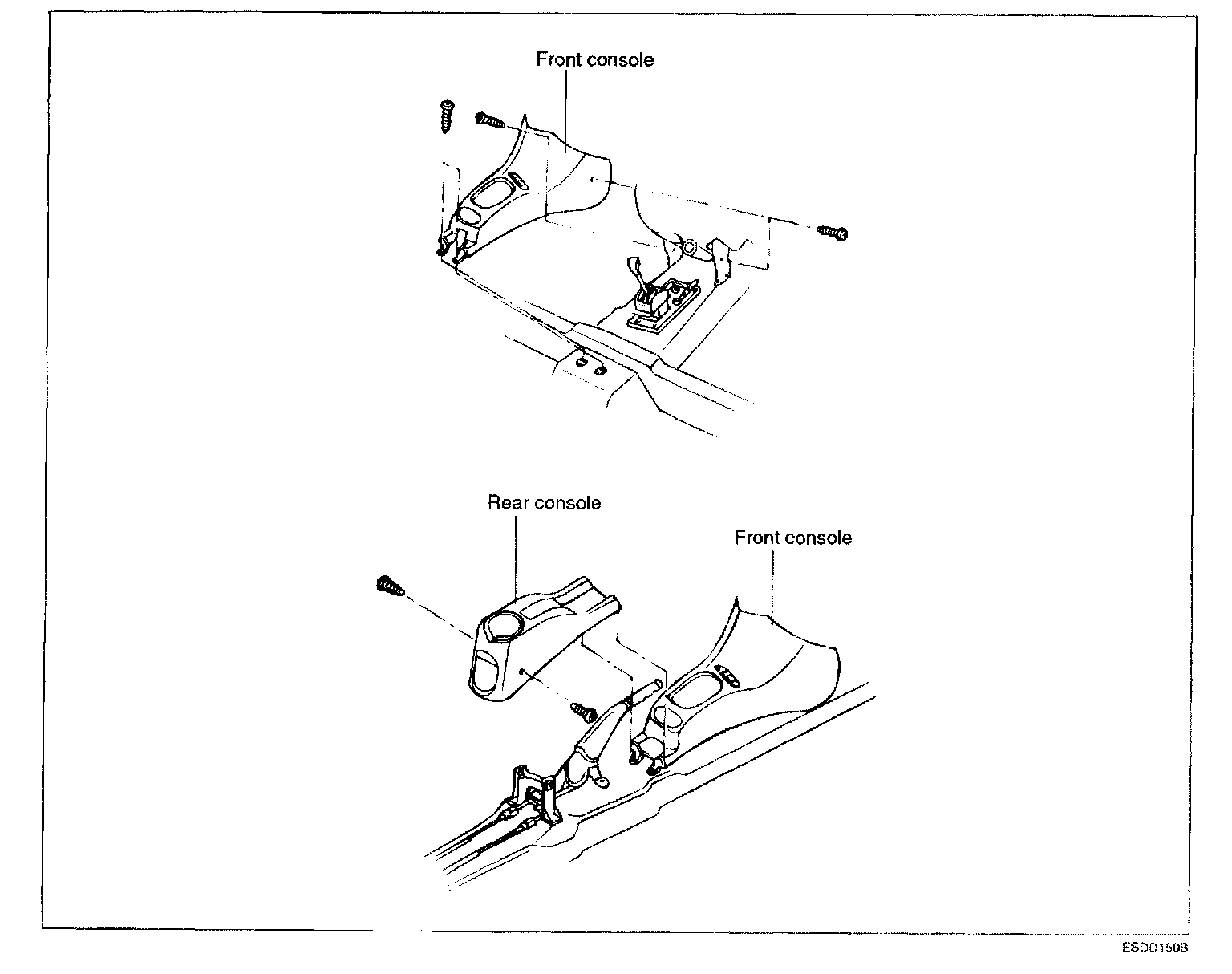

Center Console
Console:
1.

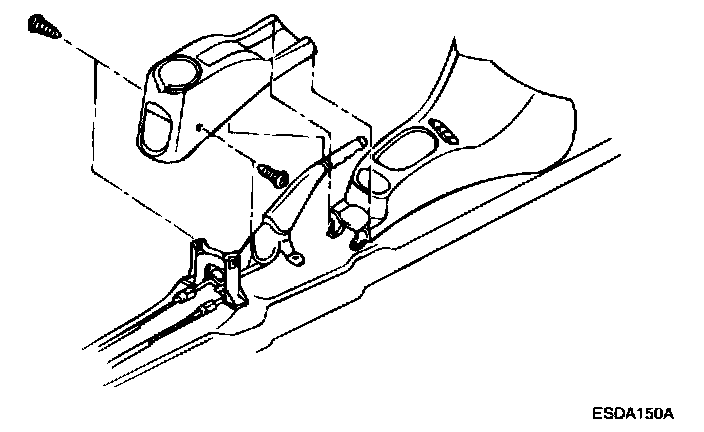

Remove the rear
console mounting screws, and then pull out the rear console.
2.
Remove the transaxle control lever.
3.

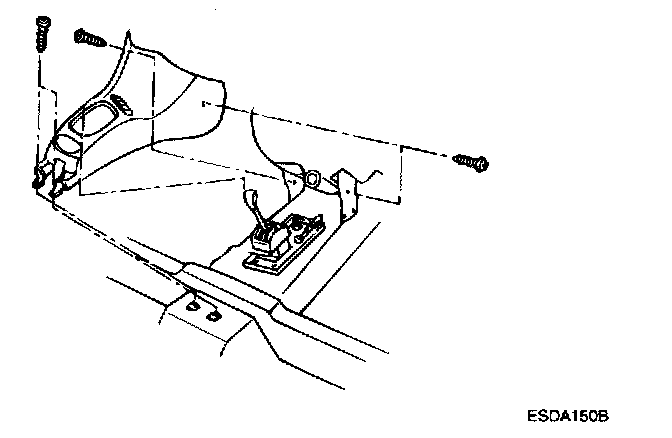

Remove the front
console assembly and then disconnect the connectors.
4.
Installation is the reverse of removal.
