Condenser HVAC: Service and Repair
REMOVAL 1.

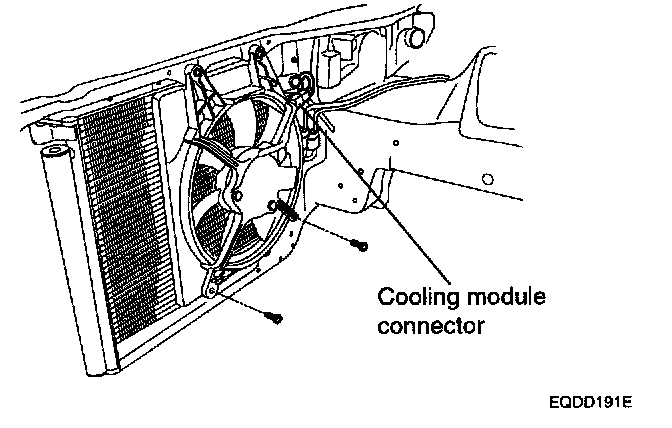

Remove the cooling module connector.
2.
Remove the cooling module (
condenser fan).
3.

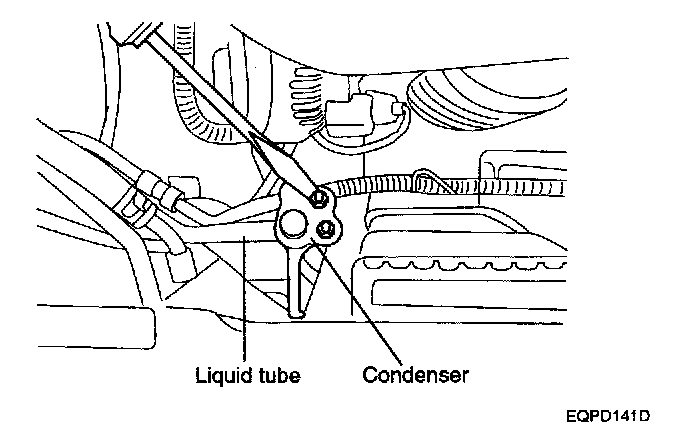

Remove the liquid tube nut.
4.
Remove the condenser mounting bolts (2).
Tightening torque:
8-12 Nm 5.
Remove the condenser upward by pressing the radiator backward the vehicle.
INSTALLATIONInstallation is the reverse of removal.
