Rear Bumper: Service and Repair

REAR BUMPER

REMOVAL AND INSTALLATION

NOTE:
- When removing and installing the rear bumper, an assistant is necessary.
- Take care not to damage the front bumper and body.
- Put on gloves to protect your hands.

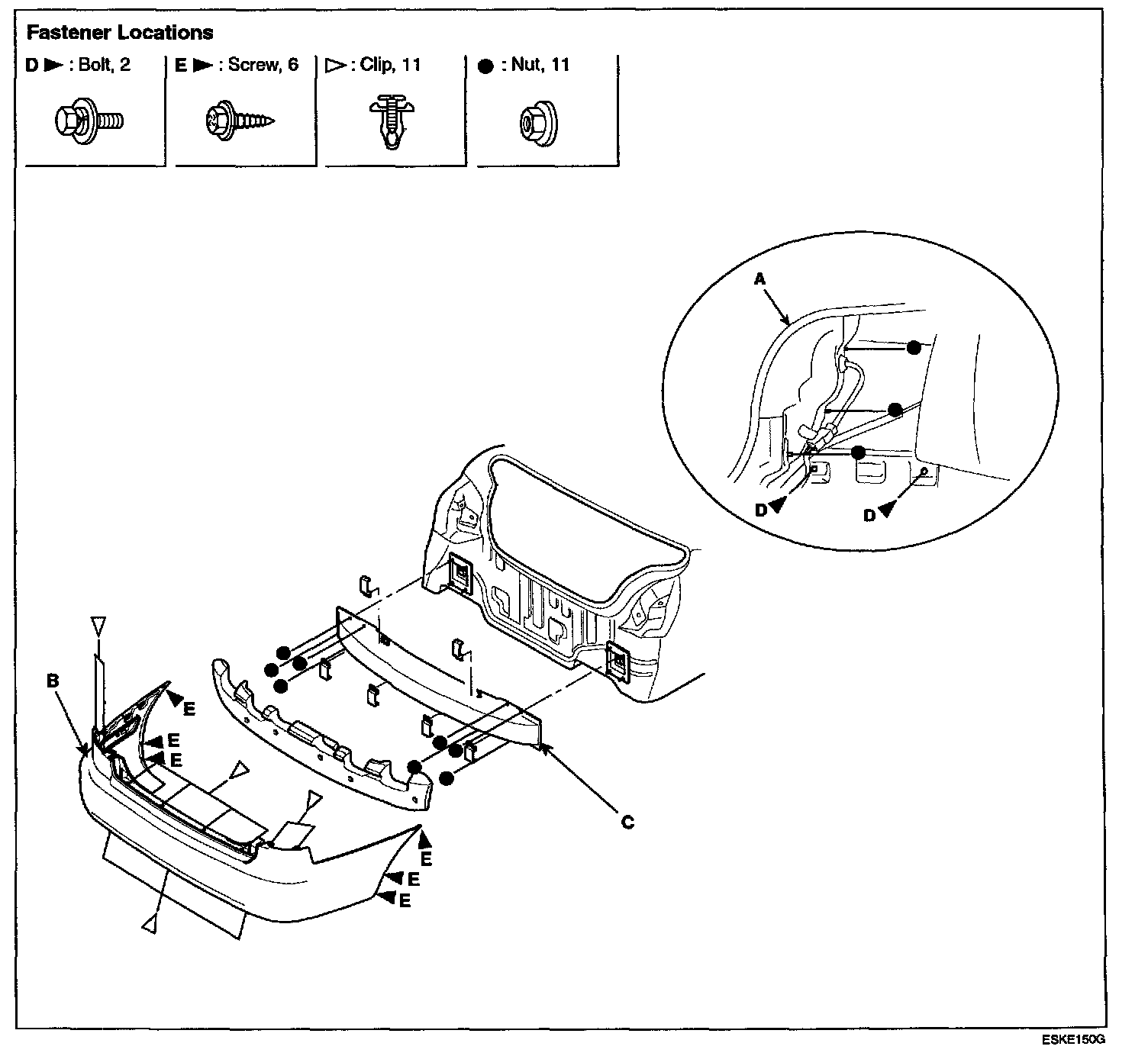

1. Remove the following items:
- Rear transverse trim.
- Luggage side trim mounting clip.
- Rear combination lamp (A).

2. Remove the rear bumper cover (B) and rail (C).
3. Installation is the reverse of removal.
