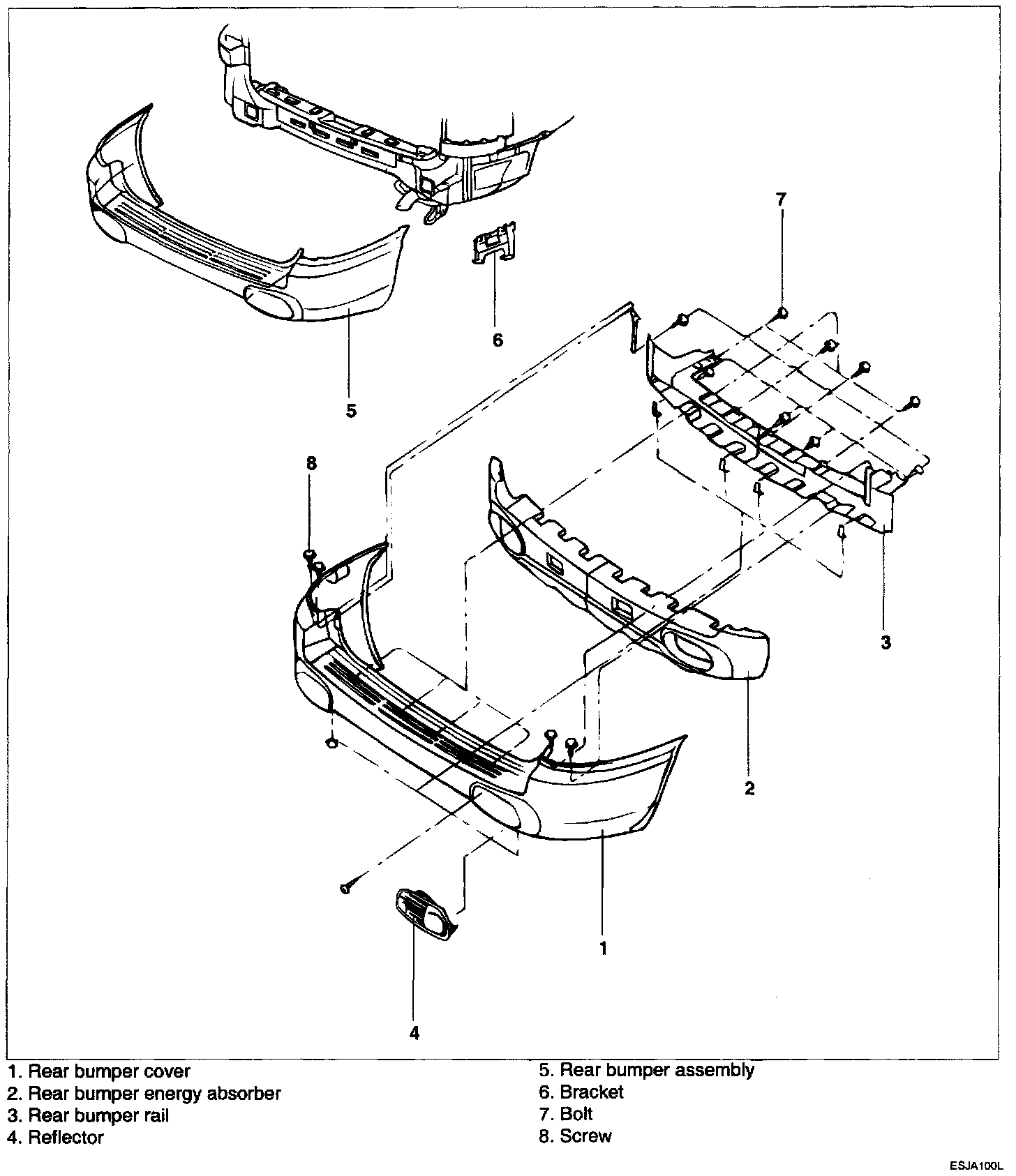

Rear Bumper: Service and Repair
REAR BUMPERRear Bumper:
REMOVAL AND INSTALLATION 1.
Remove the screws holding the rear
bumper cover.
2.
Raising the vehicle, remove the screws holding the rear
bumper cover and the rear wheel guard.
3.
Remove the energy absorber.
4.
Remove the rear
bumper rail.
5.
Installation is the reverse of removal.
