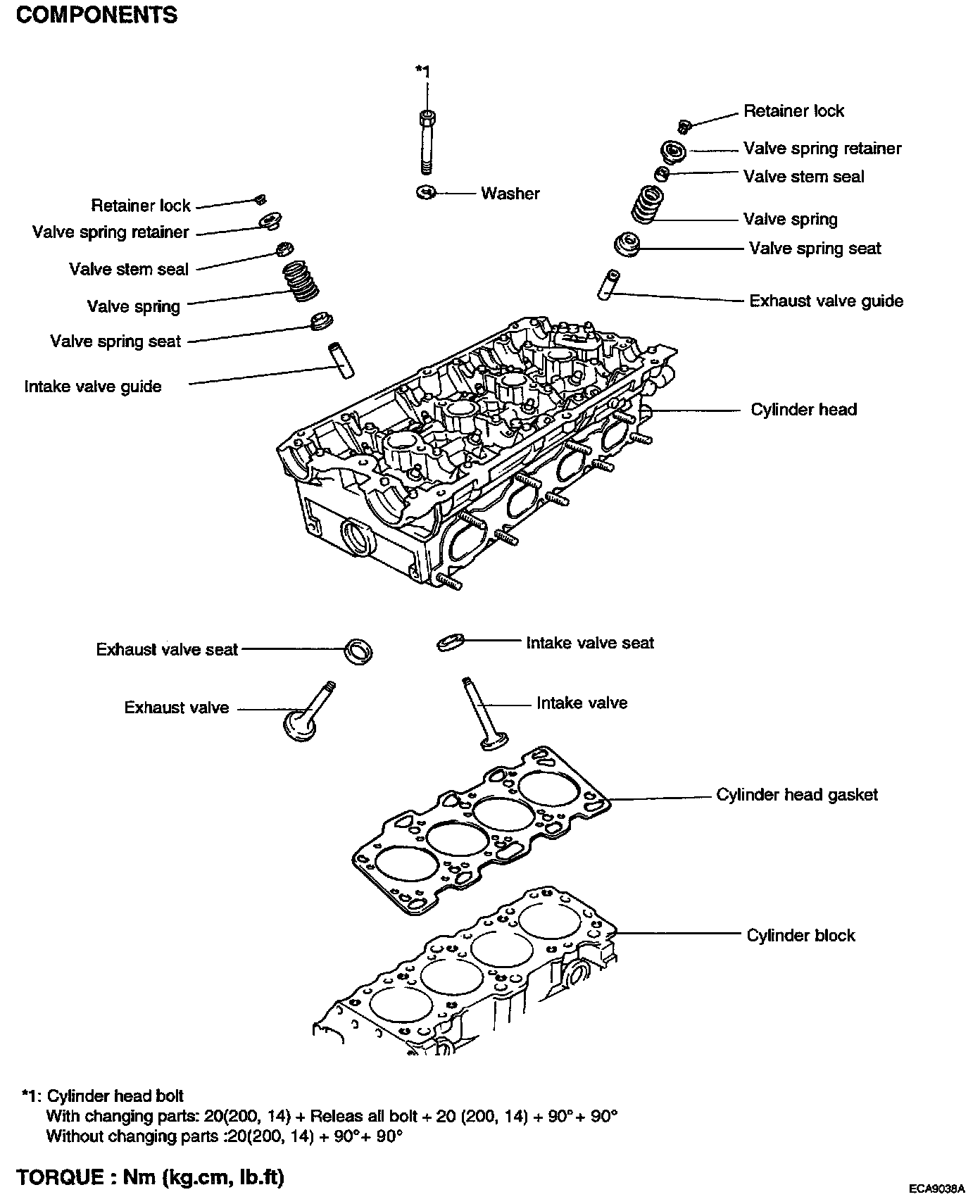

Disassembly

DISASSEMBLY

Loosening Sequence:

1. Using the special tool (09221-32001), remove the cylinder head bolts as shown in the illustration.

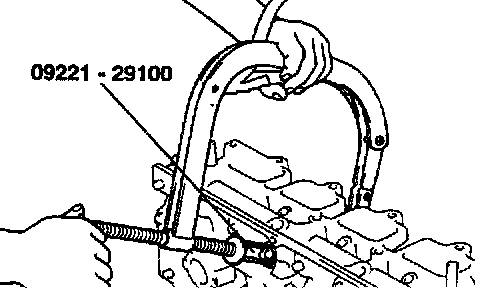

2. Using the special tool (09221-23100), remove the retainer lock. Next remove the spring retainer, valve spring, spring seat and valve.

NOTE: Keep these parts so that they can be reinstalled in their original positions.

3. Remove the valve stem seals with pliers, and discard.

NOTE: Do not reuse the valve stem seals.
