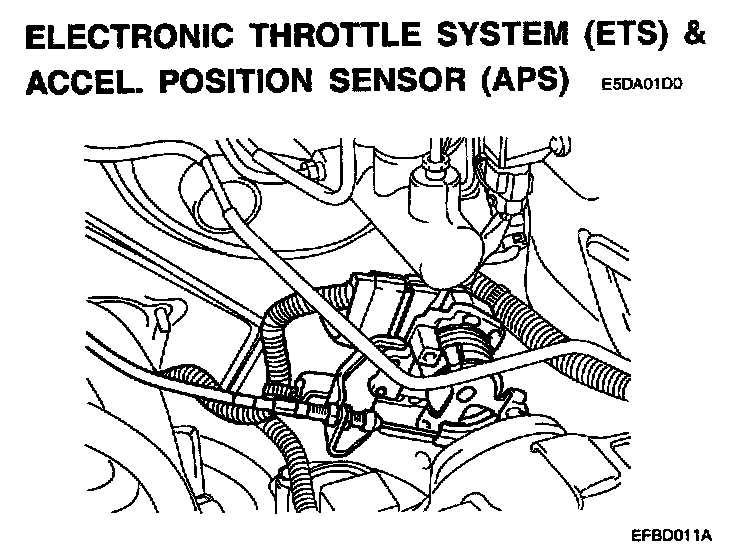

Accelerator Pedal Position Sensor: Testing and Inspection

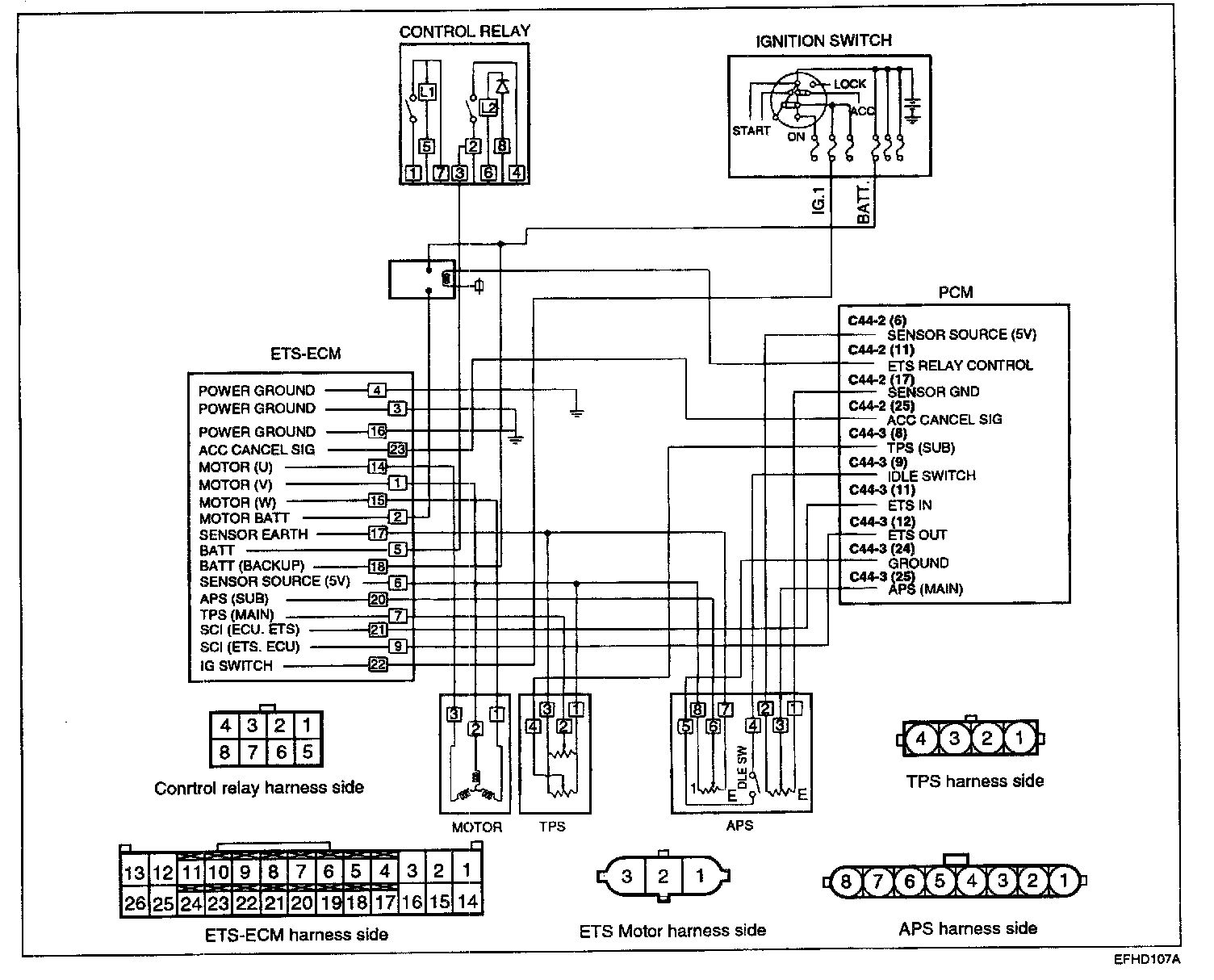

ELECTRIC THROTTLE SYSTEMCircuit Diagram:

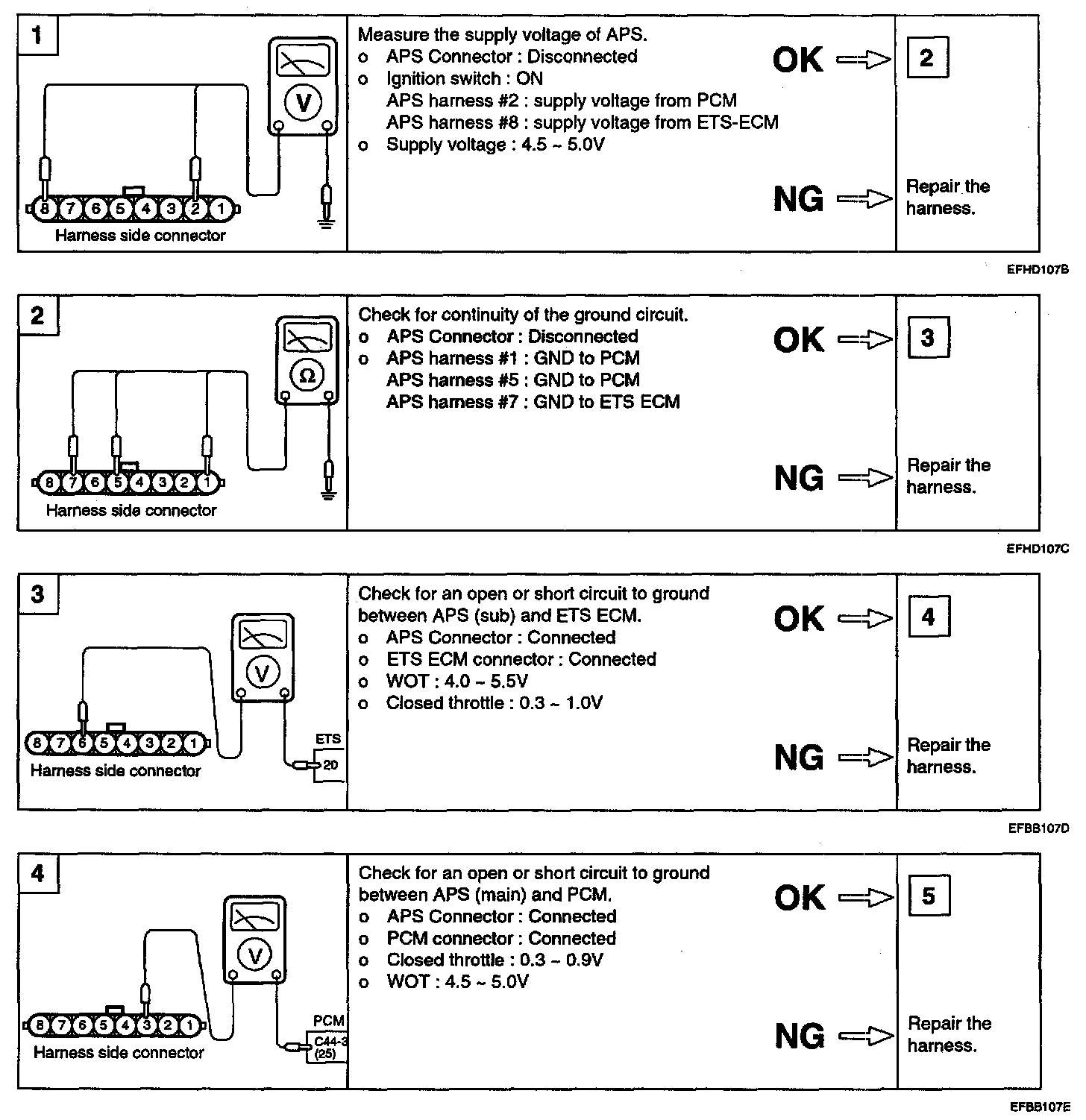

Harness Inspection Procedures (Part 1):

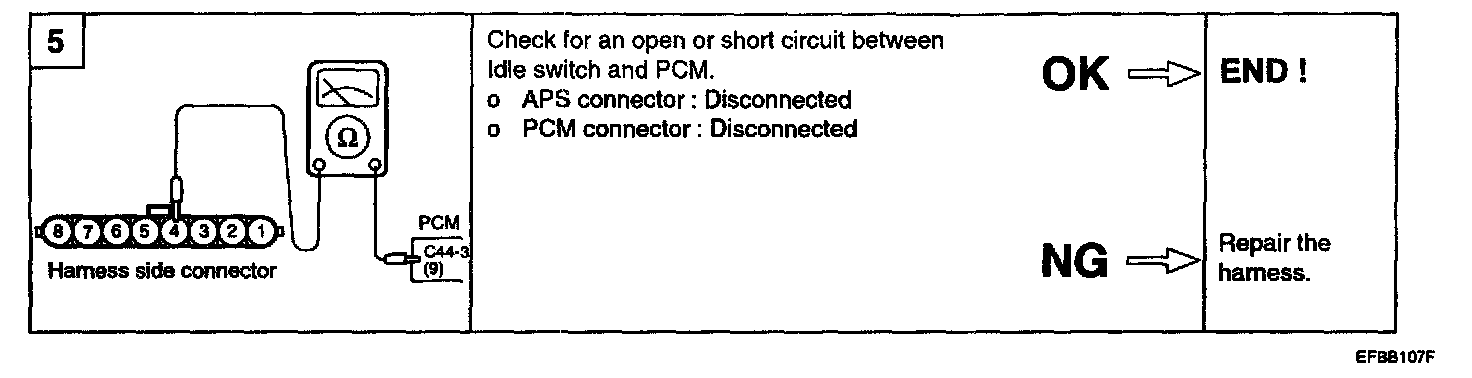

Harness Inspection Procedures (Part 2):

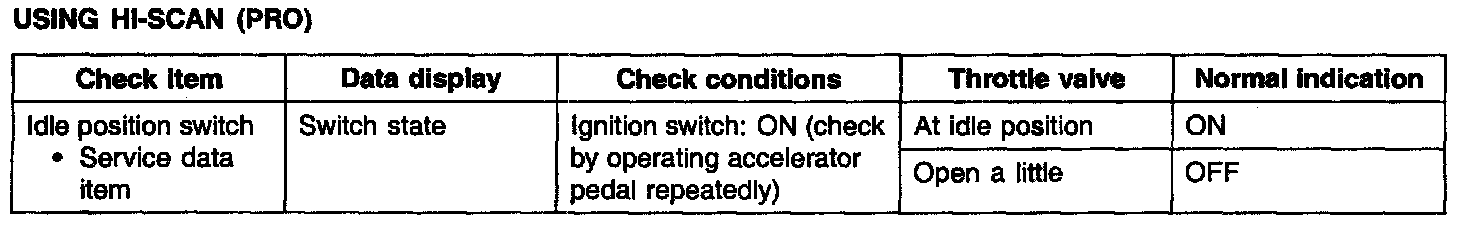

Using Hi-scan (PRO):
USING VOLTMETER 1.
Disconnect the APS connector.
2.

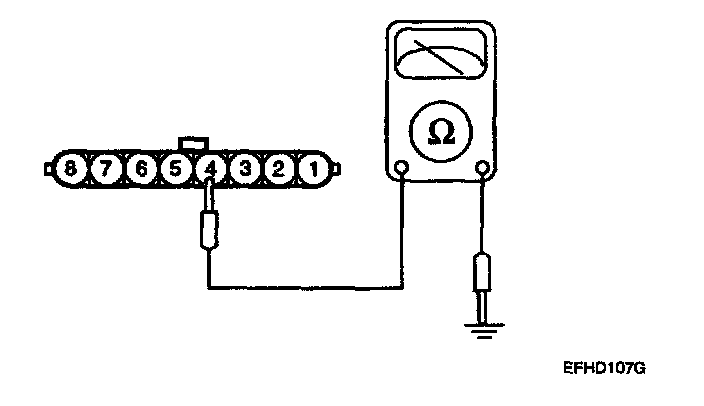

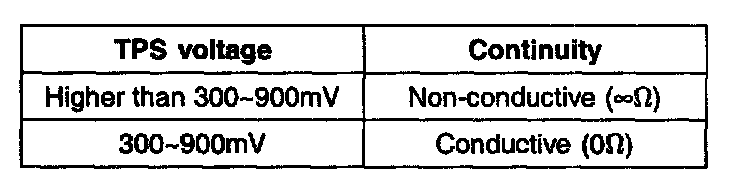

Check the continuity between terminal 4 and sensor ground.
3.
If out of specification, replace the
throttle position sensor.
