Front Bumper: Service and Repair

FRONT BUMPER

Front Bumper:






REMOVAL

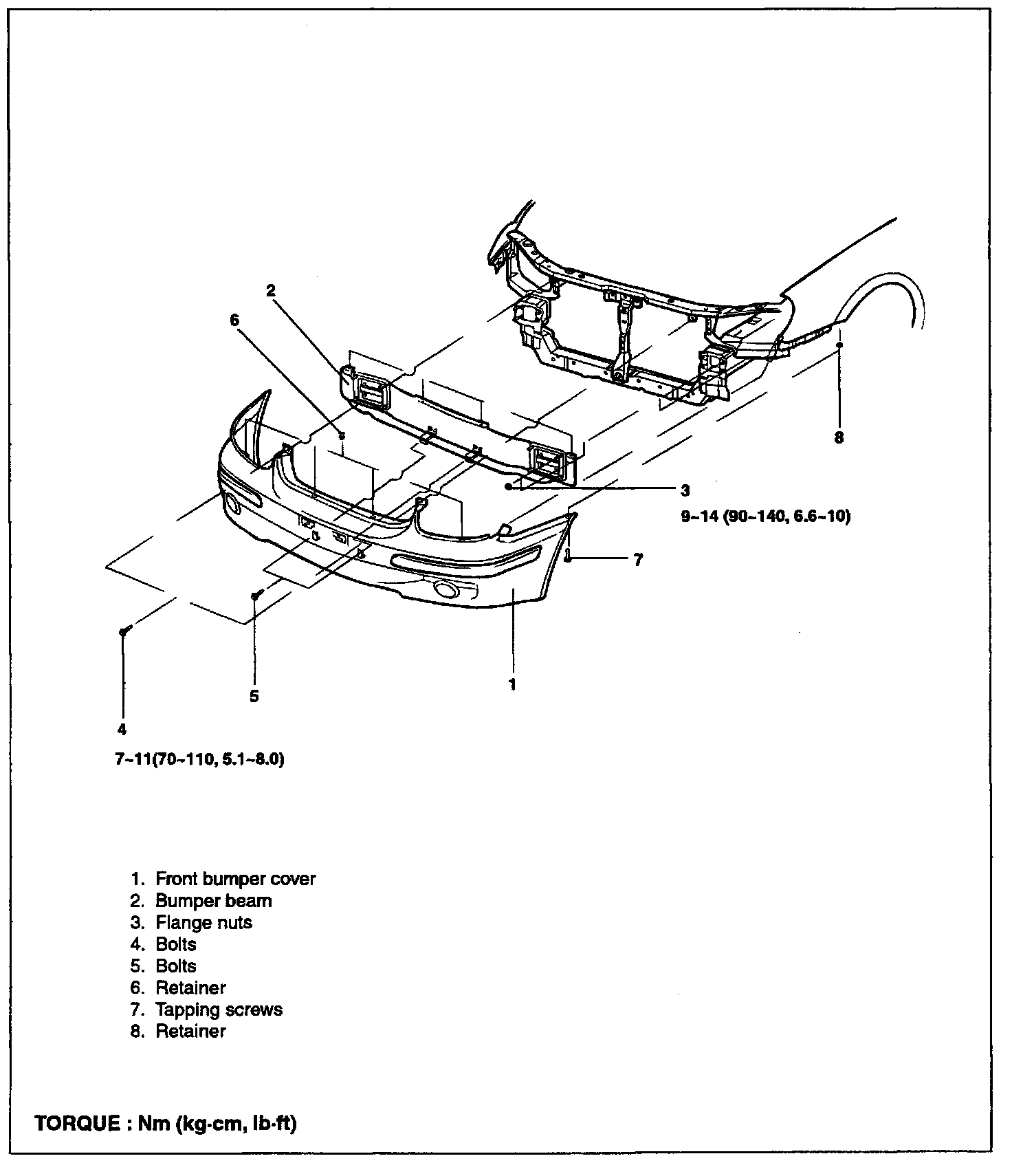

1. Remove the head lamp and turn signal lamp mounting bolts(3EA) and disconnect the wire connectors.






2. Remove the bumper cover upper mounting bolts and retainers.






3. Remove the bumper cover lower mounting retainers.






4. Remove the front bumper cover from the front bumper back beam.
5. Remove the front bumper back beam mounting nuts.

Tightening torque: 9-14 Nm (90-140 kg.cm, 6.6-10 lb.ft)






6. Installation is the reverse of removal.
