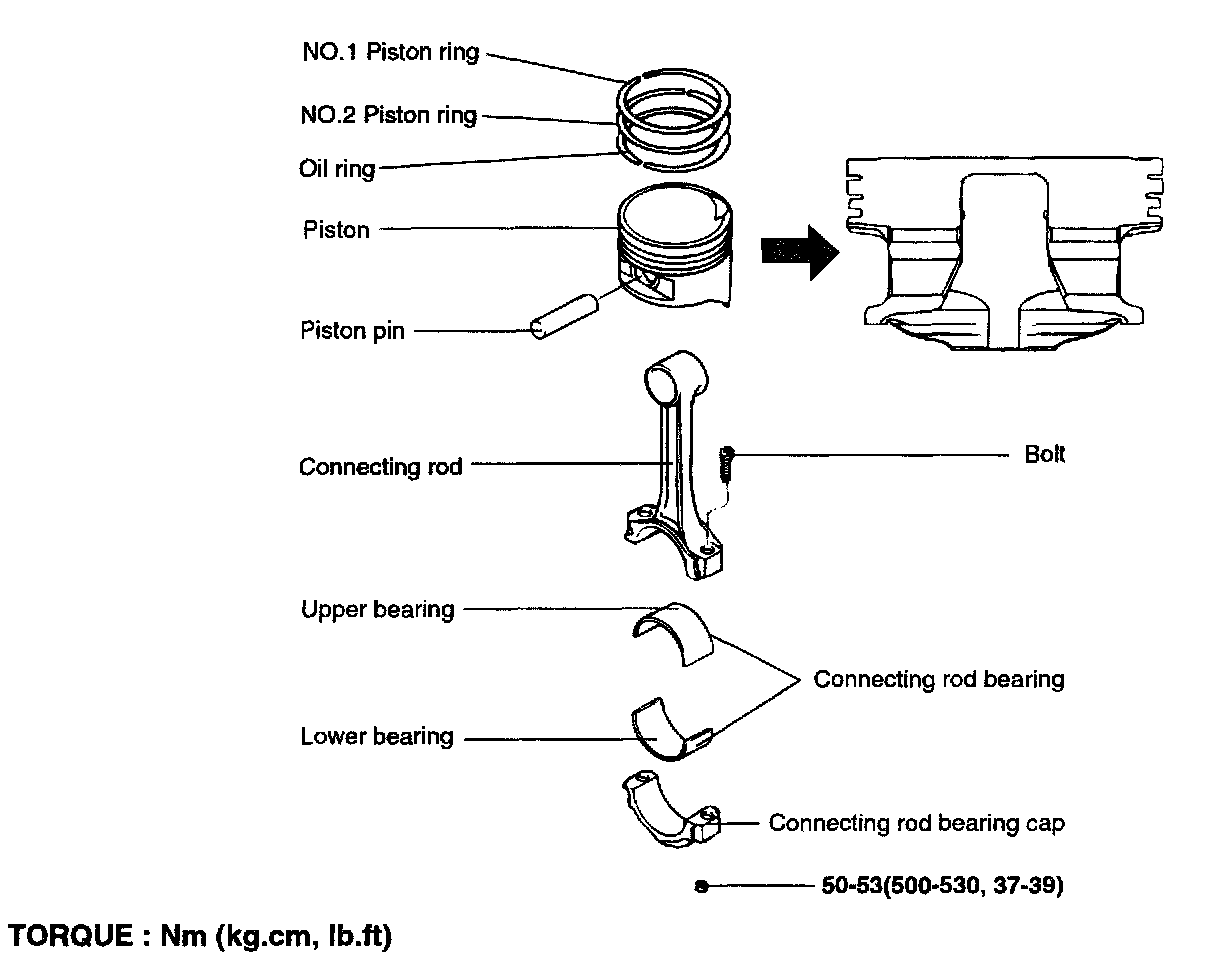

Connecting Rod Bearing
Connecting rod bearing cap
Connecting rod bearing Bend
0.05 mm (0.0020 in.) or less
Twist
0.1 mm (0.004 in.) or less
Connecting rod big end to
crankshaft side clearance
Specification
0.100 - 0.250 mm (0.0039 - 0.0098 in.)
Limit
0.04 mm (0.0157 in.)
Oil clearance (To set limits to new parts)
0.024 - 0.044 mm (0.0009 - 0.0017 in.)
Undersize
0.25, 0.50, 0.75mm (0.01, 0.20, 0.03 in.)
