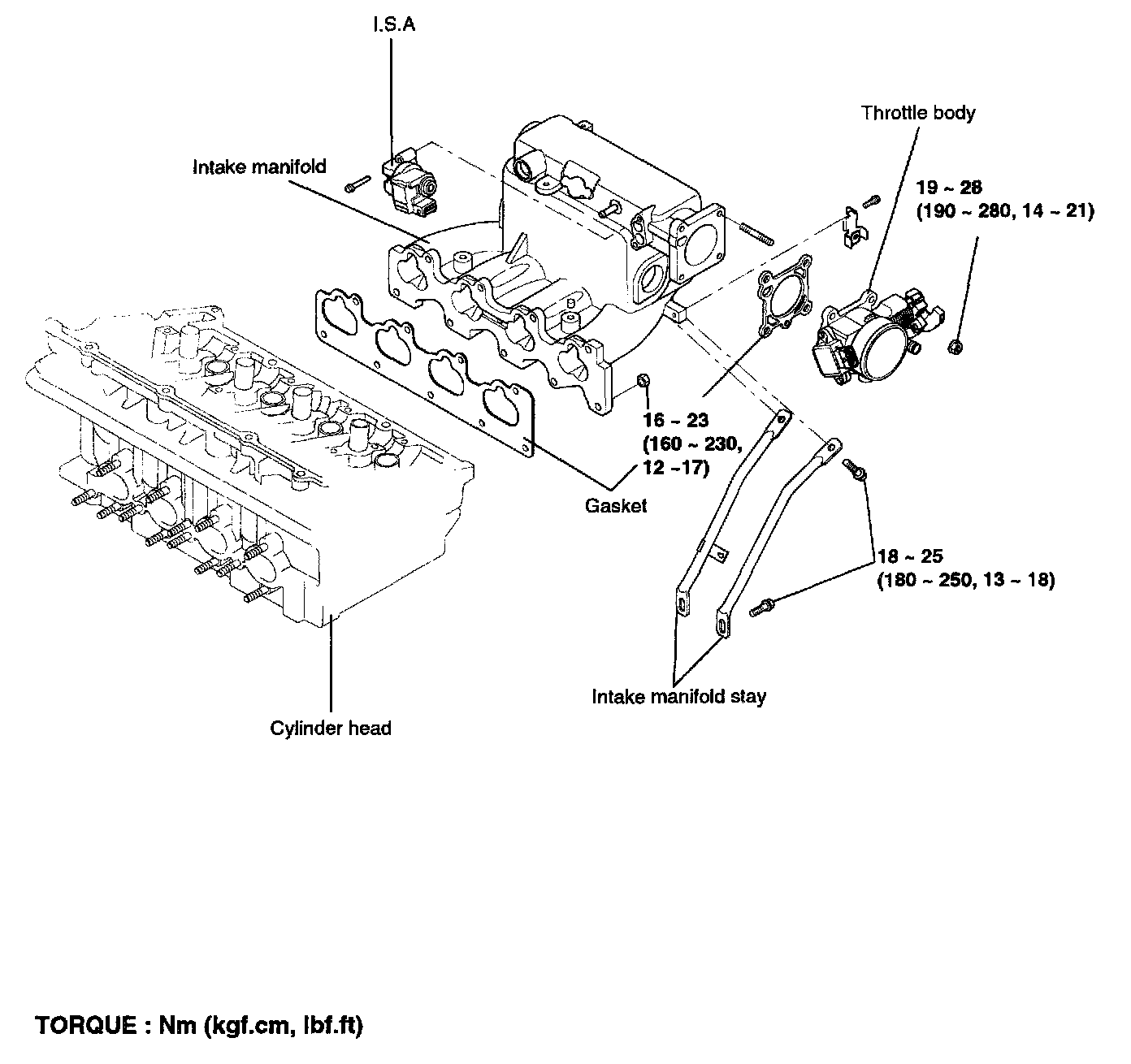

Intake Manifold
Tightening Torque
Intake manifold to cylinder head nuts and bolts
16 - 23 Nm (12 - 17 ft. lbs.)
Intake manifold to cylinder block bolts
18 - 25 Nm (13 - 18 ft. lbs.)
Throttle body to surge tank nuts
15 - 20 Nm (11 - 14 ft. lbs.)
Intake manifold nuts
18 - 25 Nm (13 - 18 ft. lbs.)
Throttle body nut
