Alarm Module: Service and Repair
REMOVAL 1.
Disconnect the negative (-) battery terminal.
2.

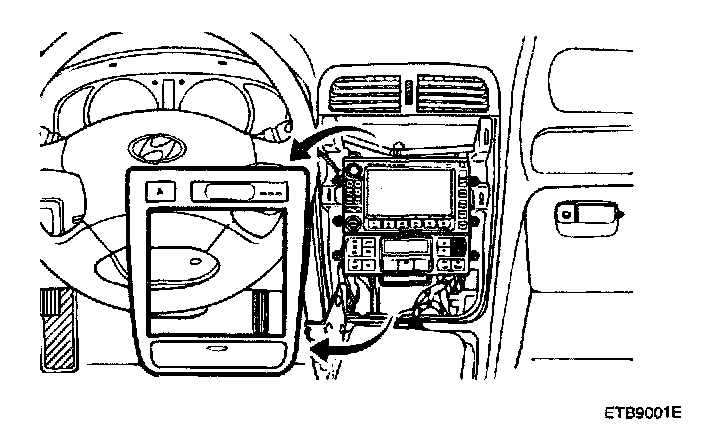

Remove the center facia panel using a screwdriver and disconnect the switch connectors.
3.
Unscrew the audio mounting screws and remove the audio assembly from the mounting bracket.
4.

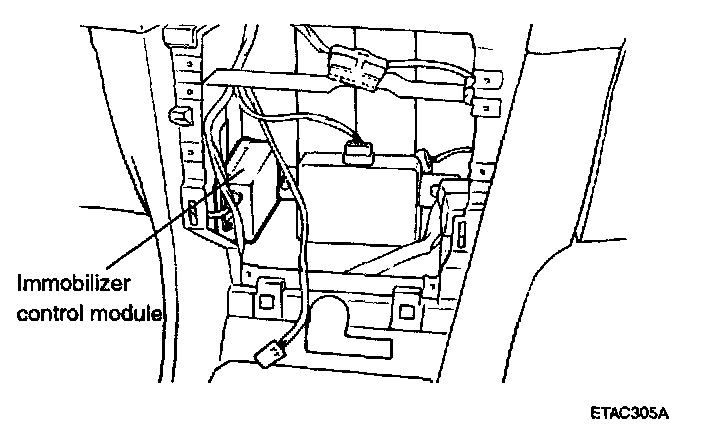

Remove the flange nuts holding the ICM (Immobilizer Control Module) from left hand center facia support bracket.
