Power Seat Switch: Testing and Inspection

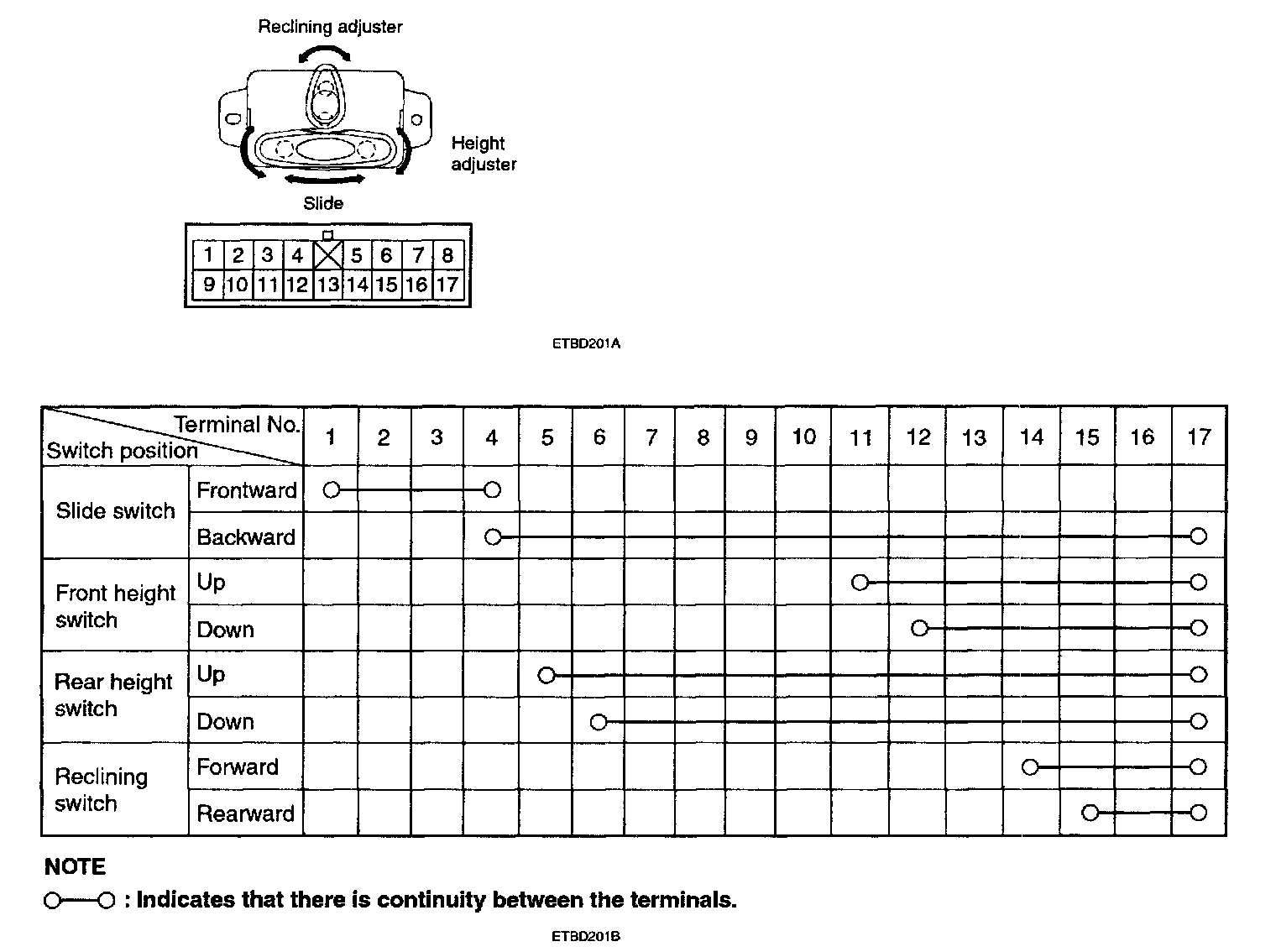

POWER SEAT SWITCH [DRIVER SIDE]Operate the
power seat switch and check for continuity between terminals. If continuity is not as specified, replace the switch.

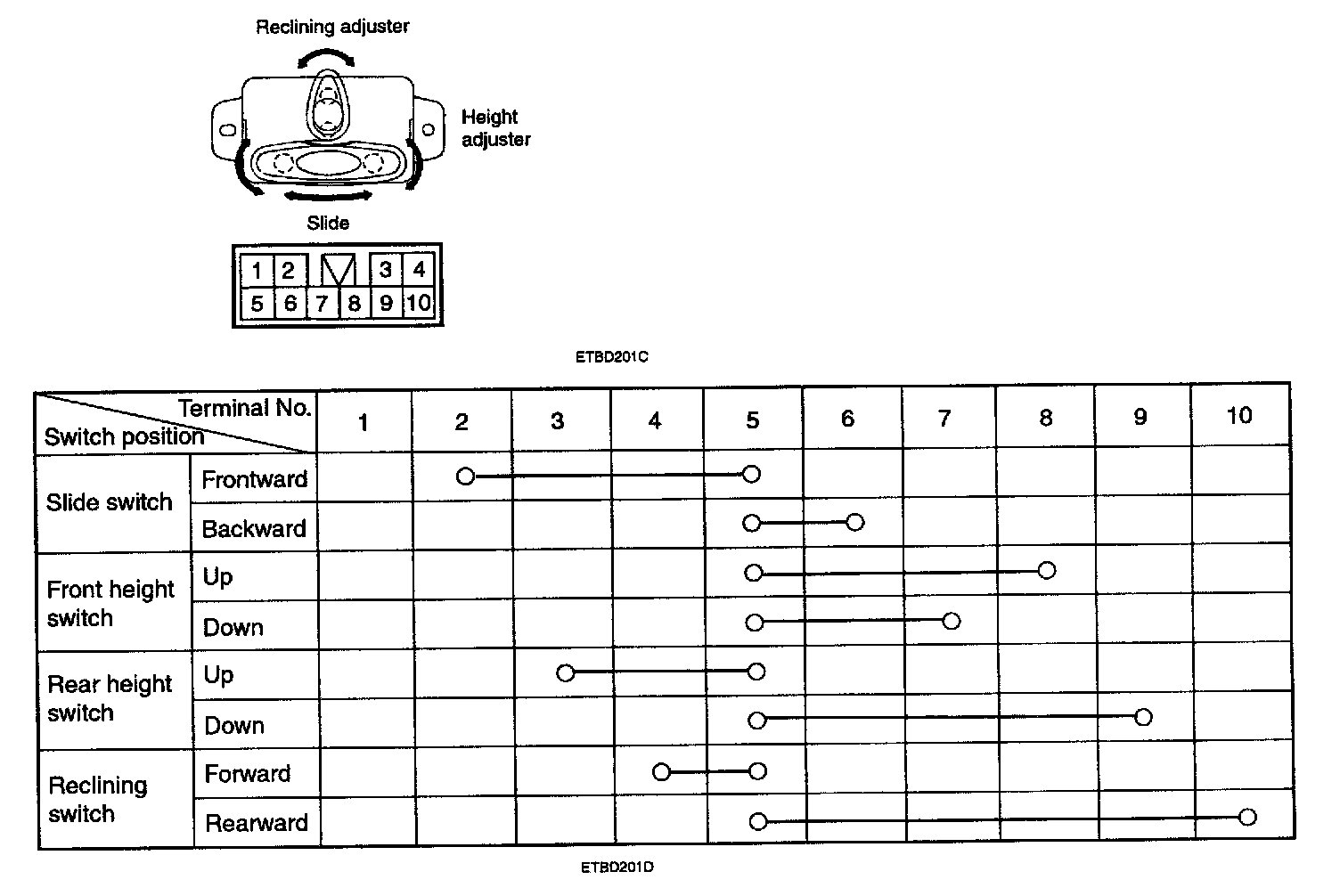

POWER SEAT SWITCH [ASSIST SIDE]Operate the
power seat switch and check for continuity between terminals. It continuity is not as specified, replace the switch.
