Condenser HVAC: Service and Repair
REMOVAL 1.
Discharge the
refrigerant.
2.
Drain the coolant.
3.
Remove the radiator grill.
4.

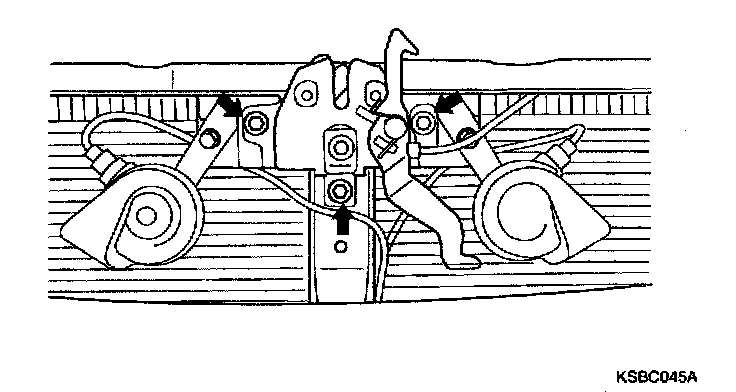

Remove the hood catch bracket and stay.
5.
Disconnect the discharge hose and the liquid tube.
6.
Remove the condenser assembly.
INSTALLATIONInstallation is the reverse of removal procedures.
