Intake and AQS Check

INTAKE AND AQS CHECK

Error Diagnostics:

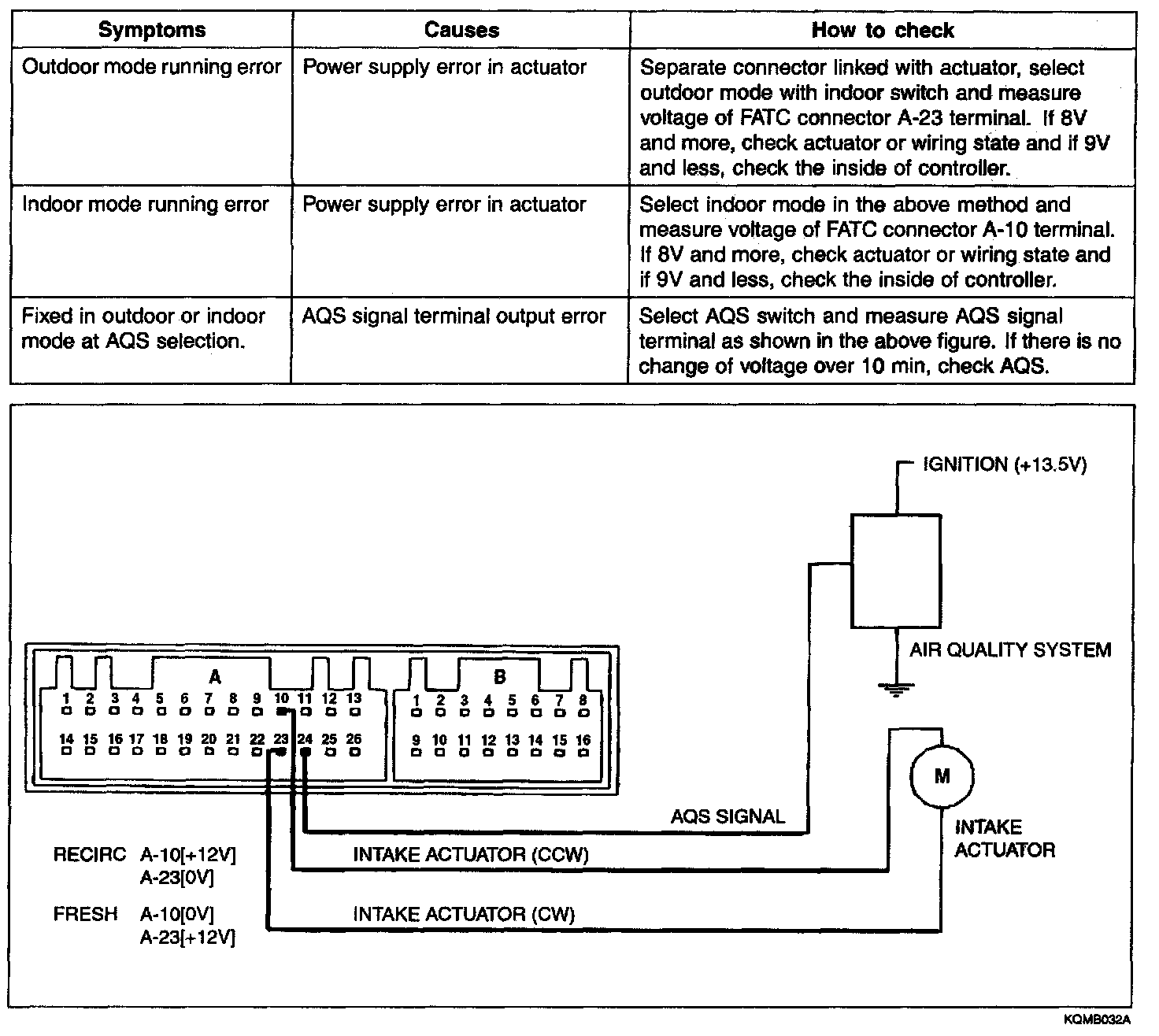

In turning on IG and selecting outdoor mode with indoor switch, 12 V is outputted from FATC connector A-23 terminal, 0 V is supplied for A-10 terminal and motor works in direction of outdoor. In selecting indoor mode with indoor switch, 12 V is outputted from FATC connector A-b terminal, 0 V is supplied for A-23 terminal and motor works in direction of indoor.
