Intake Check

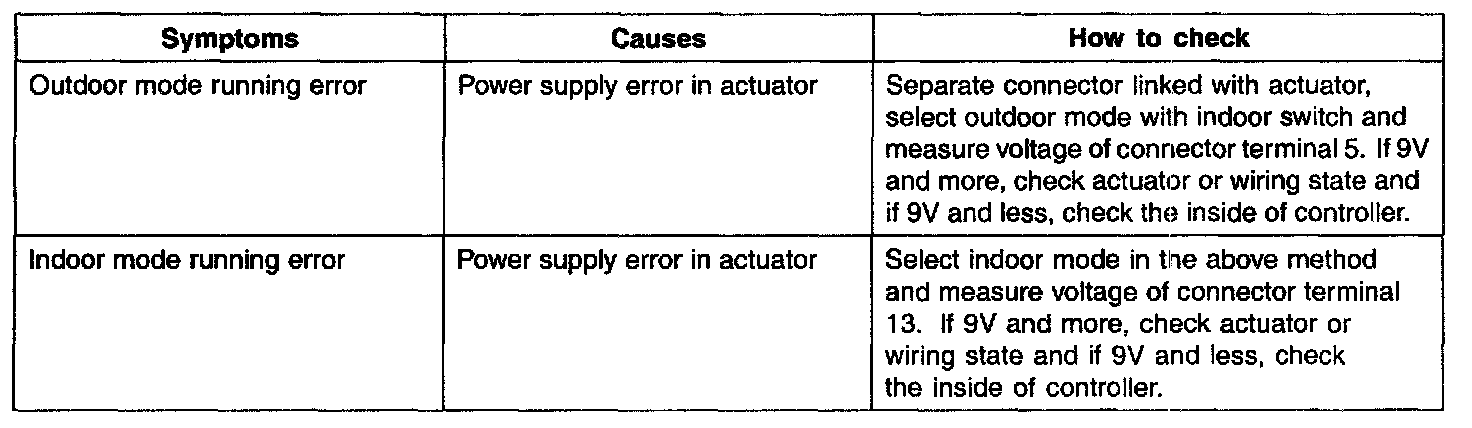

Troubleshooting:

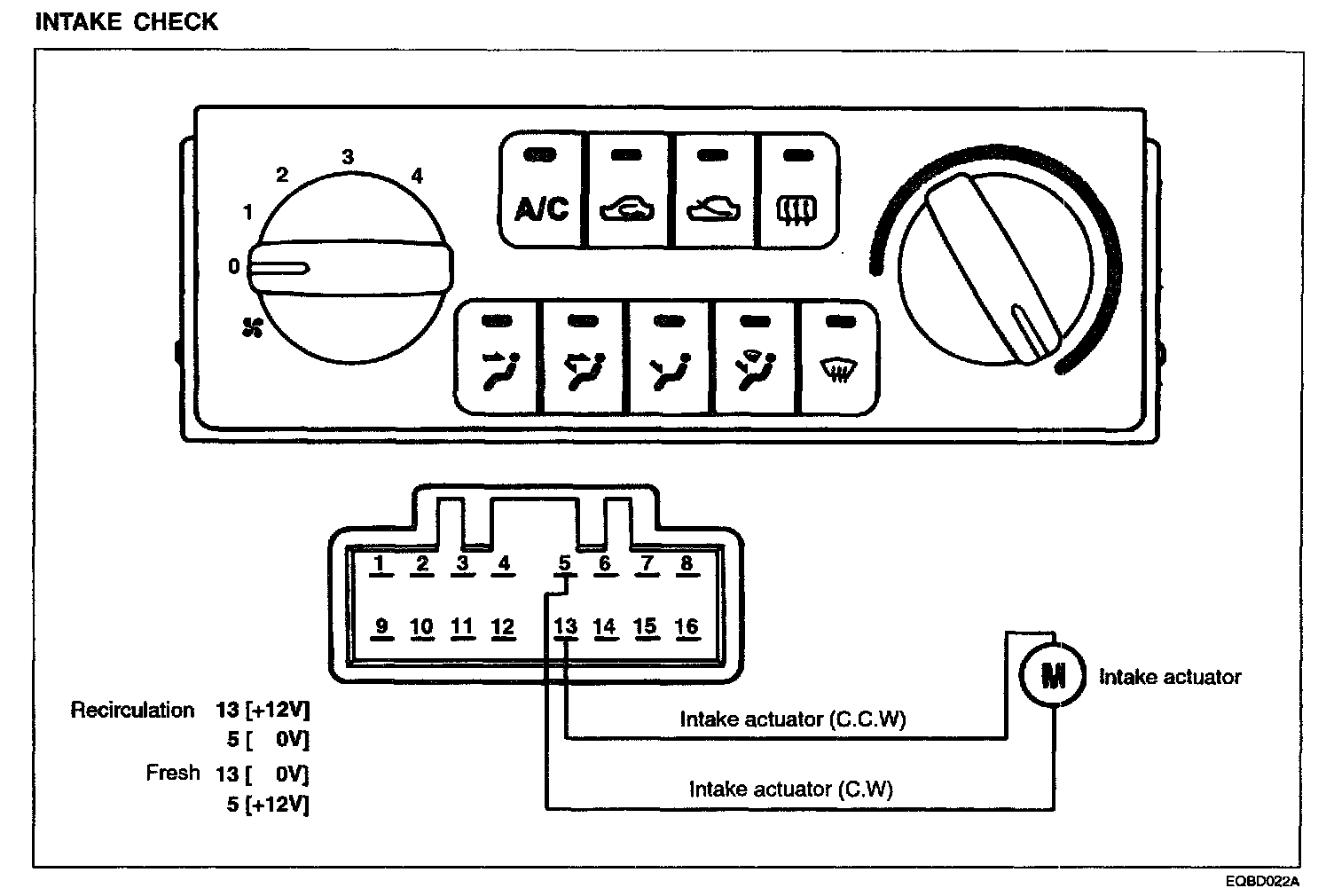

In turning on IG and selecting outdoor mode with indoor switch, 12 V is outputted from connector terminal 5, 0 V is supplied for terminal 13 and motor works in direction of outdoor. In selecting indoor mode with indoor switch, 12 V is outputted from connector terminal 13, 0 V is supplied for terminal 5 and motor works in direction of indoor.
