Solar Sensor: Testing and Inspection
INSPECTION -

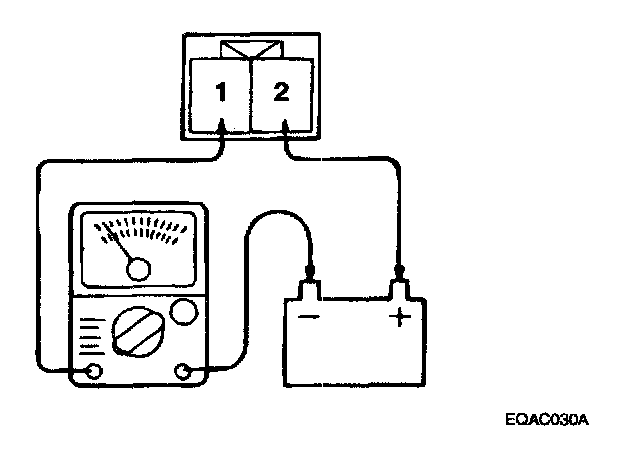

In bright place, measure ampere between pin 1 and battery (-) terminal.
-
In dark place, measure ampere between pin 2 and battery (+) terminal.
-
Check the ampere in the brig hi: place is higher than in the dark.
NOTE: The voltage is same as the ampere.
