Vehicle Speed Sensor: Testing and Inspection
Vehicle Speed Sensor Check 1

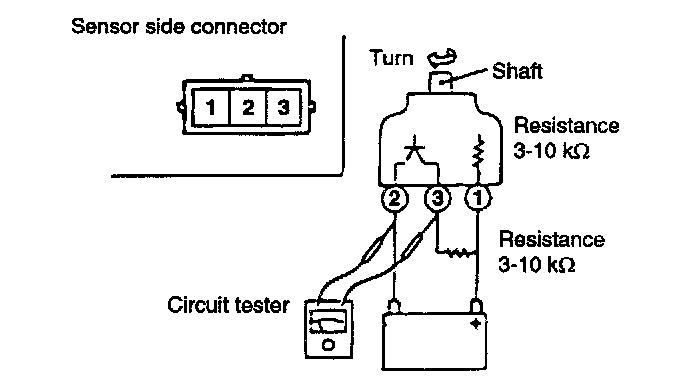

Remove the
vehicle speed sensor and connect a 3-10 K Ohms resistance as shown in the illustration.
2
Turn the shaft of the
vehicle speed sensor and check that there is voltage between terminals 2-3 (1 turn=4 pulses).
