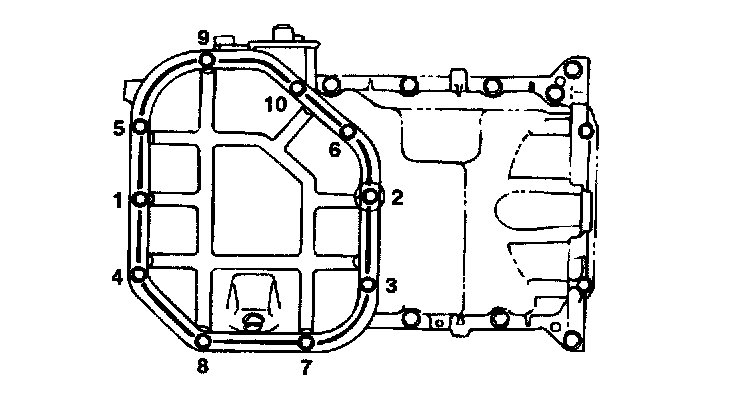

Oil Pan, Engine

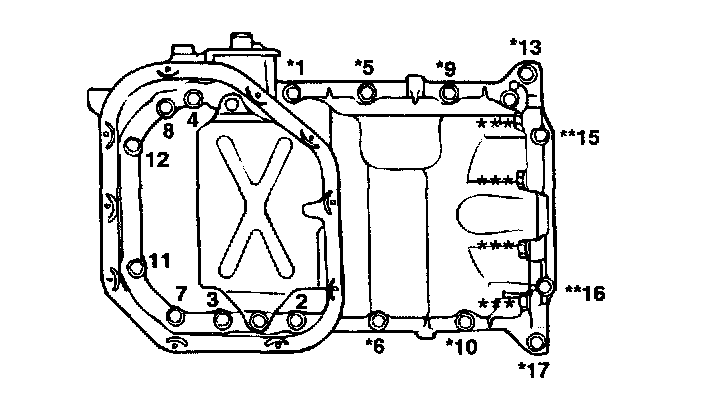

Torque SpecificationsOil pan bolt
*: 5 - 7 Nm (50 - 70 kg-cm, 4 - 5 ft. lbs.)
**: 5 - 7 Nm (50 - 70 kg-cm, 4 - 5 ft. lbs.)
***: 30 - 42 Nm (300 - 420 kg-cm, 22 - 30 ft. lbs.)
T/M tightening bolt (4EA): 10 - 12 Nm (100 - 120 kg-cm, 7.2 - 9 ft. lbs.)
